Cyclopedia of architecture, carpentry, and building : a general reference work (1912)
American Technical Society · Chicago : American Technical Society · leaf 49

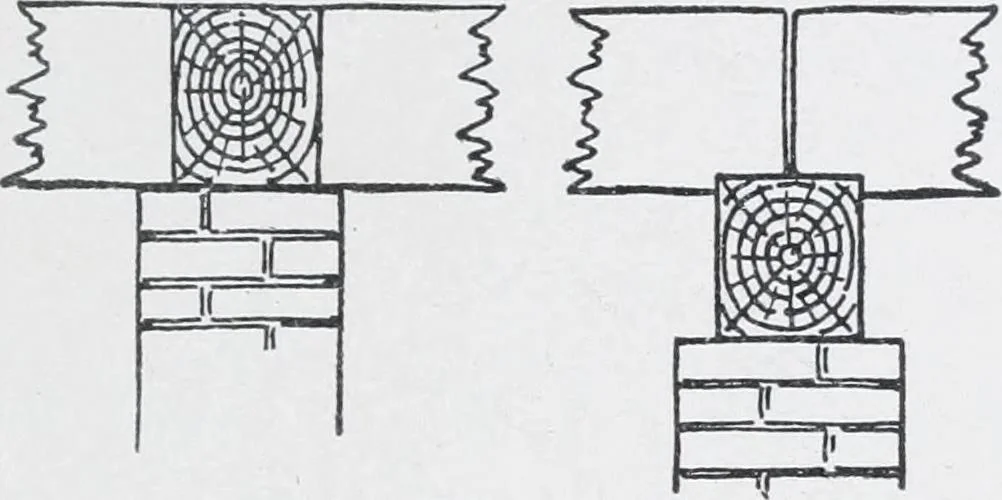

Pig. 19. Sill on Wall. 34 BUILDING SUPERINTENDENCE 27 of the girder is available and that it is possible to run hot air and otherpipes up in the partitions without cutting the girder. If flush girdersare used the position of mortises, as well as the position of the mor-tises in the sill should be… … Flush Girder. Fig. 20. Dropped Girder. the openings framed for chimneys, stairways, etc., are correctly laidout according to the framing plans. Obvious errors will, of course,be easily detected but it will save much annoyance later if everymortise is verified before the floor is put on. When this…
