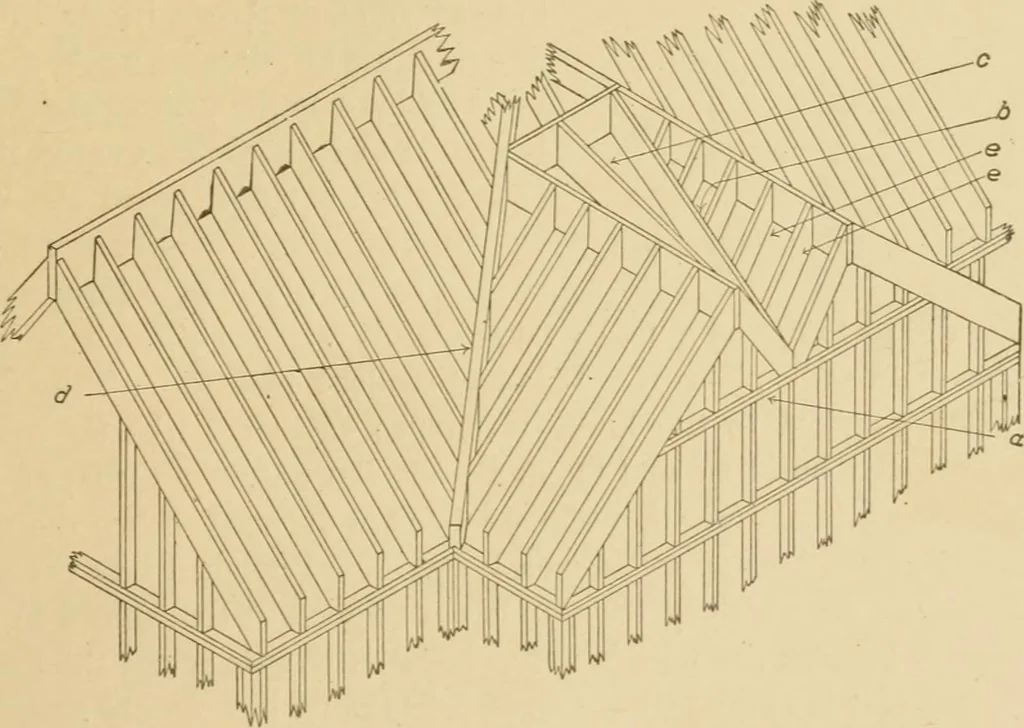

Fig. 139. Tie Beam Support for Rafters. Fig. 140. Pitch Roof withDouble Gable. the ell, the main roof being a simple pitch roof. This is shown inFig. 140. Fig. 141 shows how such a roof may be framed. Thepiece a is placed in the wall and supported by the stiiddino- andserves as a plate to receive… … Fig. HI. Framing for Double Gable. ley rafters. These, together with the piece c, form the framingfor the shallow valley between the two gables. The valley rafterson the outside, marked d in the figure, are similar to those used 93 84 CARPENTRY in tlie case of a single gable. The pieces e e are…
