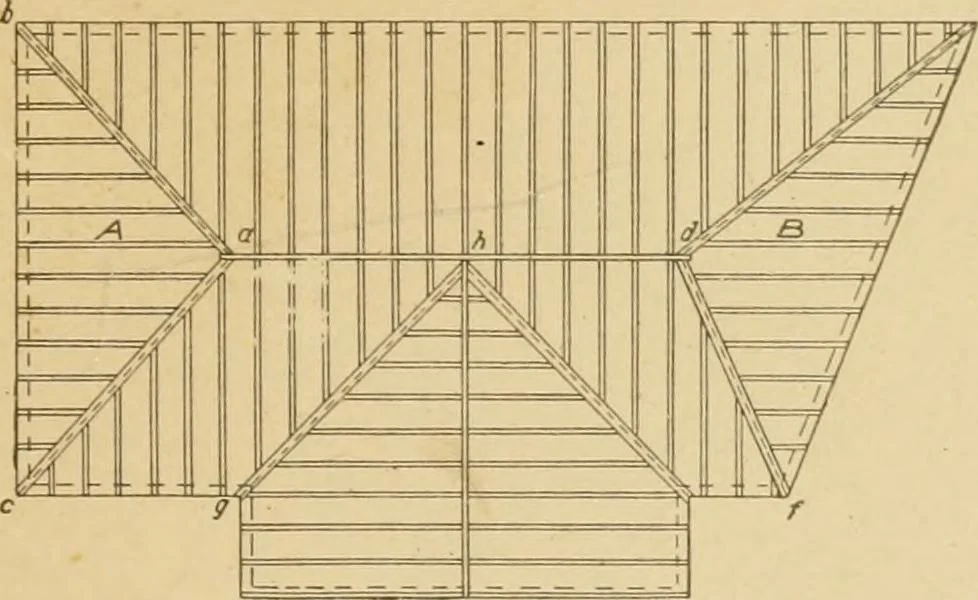

bevel on anyValley rafter can be found, as well as the run, or Riuit^ of the valleyrafter, its rise, its length, etc. Hip Rafters. Fig. 160 shows the plan of a roof in whichthere are some hip rafters. Ki one end we have a square hip A,and at the opposite end we have a skew hip B. The hip raftersare… … Fig. 160. Plan of Roof with Hip. Rafters. exactly the same as the valley rafter. It has the same pitch, orinclination, toward the ridge a d. Its pitch must be the samesince it lies in the same roof surface, and is parallel to the valley.This similarity between hip and valley rafters is…
