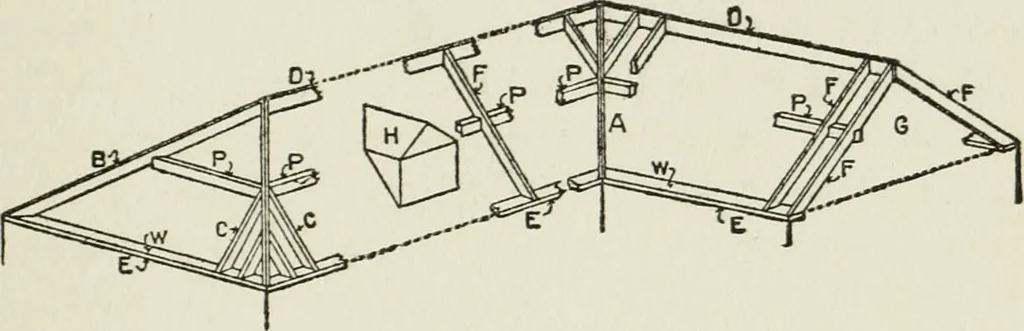

P on AH equal to AP on AO,either by describing an arc with A as a centerand AP as a radius, or by transferring the point PRACTICAL CARPENTRY 139 P to P on a straight-edge, as before stated.From P draw P P perpendicular to AILThen from P on the section draw a line PP^parallel to FH, until it… … FIG. 157 requisite curved line, and a pattern rafter cut tofit. It will be apparent from inspection that theangle bracket is found in the same manner. Details of Roofs. Hips are the external anglesby the junction of the roof and its return round theends, where the walls are not carried up to…
