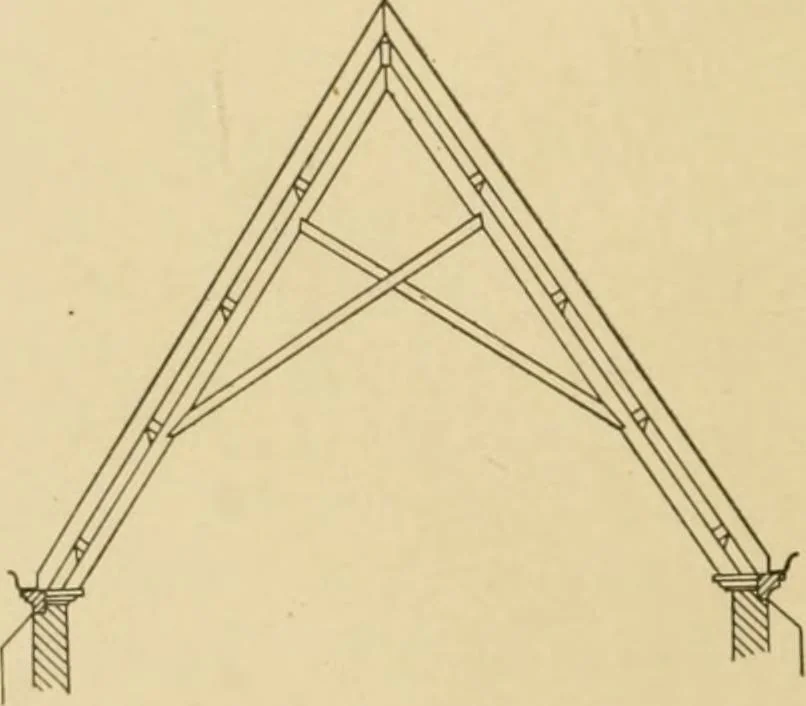

ts are of wood. Ifdesired, an iron tie rod may beinserted between the two wallbearings of the truss, so as todiminish the thrust on the walls,and this need not detract seri-ously from the appearance of theopen timber work. A very popular form of trussfor use in churches is the hammer beam truss… … Fig. !.«». Scis.sors Truss. 134 CARPENTRY 125 The sizes of the pieces can only be detei-niined by calculation orexperience, and depend entirely upon the span of the truss and th^loads to be carried, which are different for different parts of thecountry. It is common practice to insert a tie rod…
