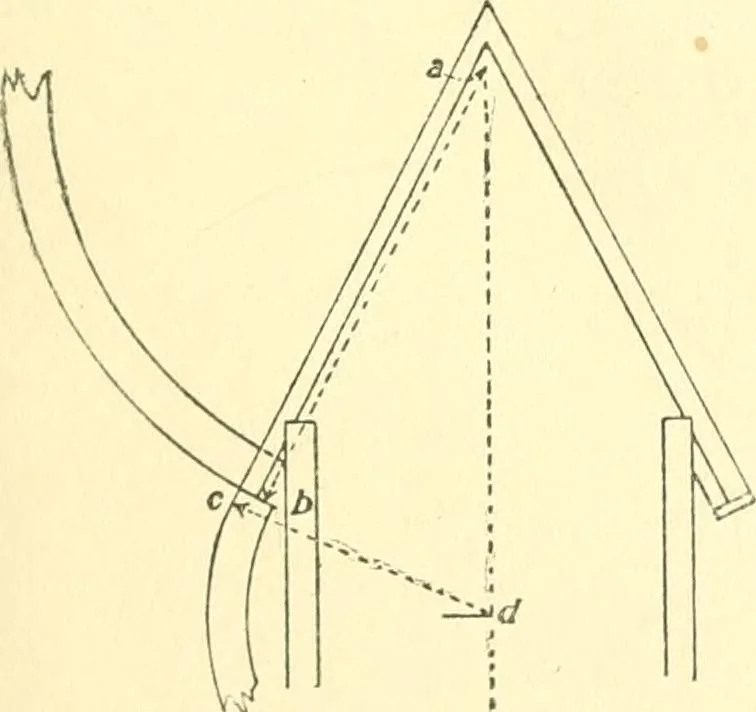

adius for the planceer, and c d, whichis drawn at right angles to therafter until it strikes the centreline, a d, is the radius for thefacia, if it is put on square tothe rafter. 36—To Work Out theCrovs/Ti Moulding for a Con-ical Roof when the Faciais Set Square with theRafter.—Draw a half… … Fig. 3& 3S GUIDE AND ASSISTANT of the circle across one end of the plank, as a c, Fig. 38.Cut the end of the plank off and with the bevel at d, Fig.:^/, mark off the moulding as shown in Fig. 39. Theplank can then be cut on the band saw and the mouldingworked out by hand.
