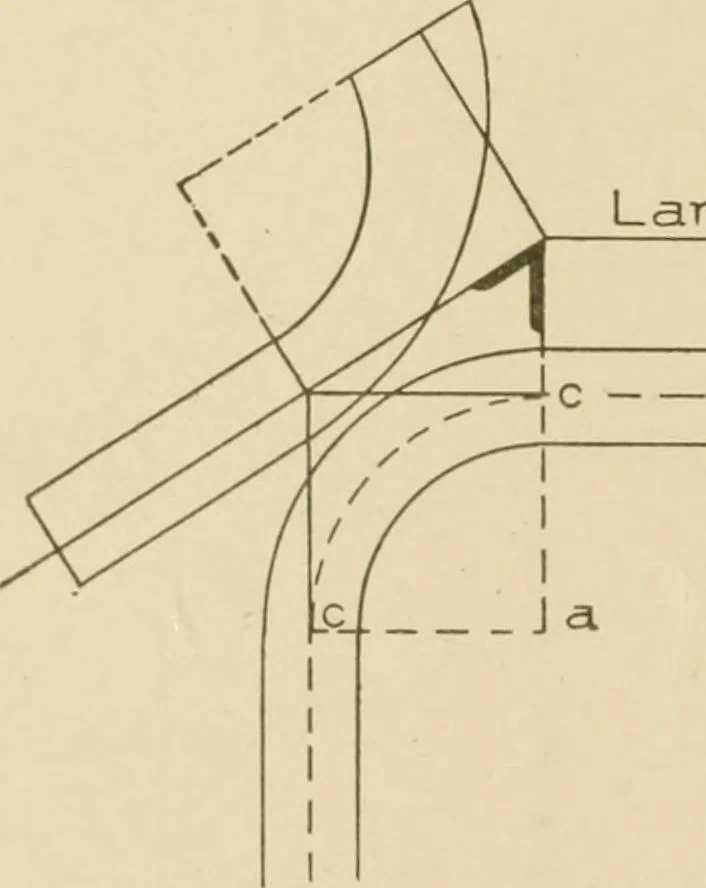

FiR. 129. Drawing Face-MonUlfor Wreath from Pitch-Board. … Landinq Rail Fig. 130. Development of Face-Mould for Wreath Connecting Railof Flight with Level-Landing Kail. the semi-major for the inside curve) on the dividers; fix one leg at 2,and describe the arc Y, cutting the major where the pins are shownfixed, at 0 and o. Now take a piece of string long…
