The essentials of gearing; a text book for students and for self-instruction, containing numerous problems and practical formulas (1911)
Anthony, Gardner C. (Gardner Chace), 1856- · Boston : D.C. Heath · leaf 82

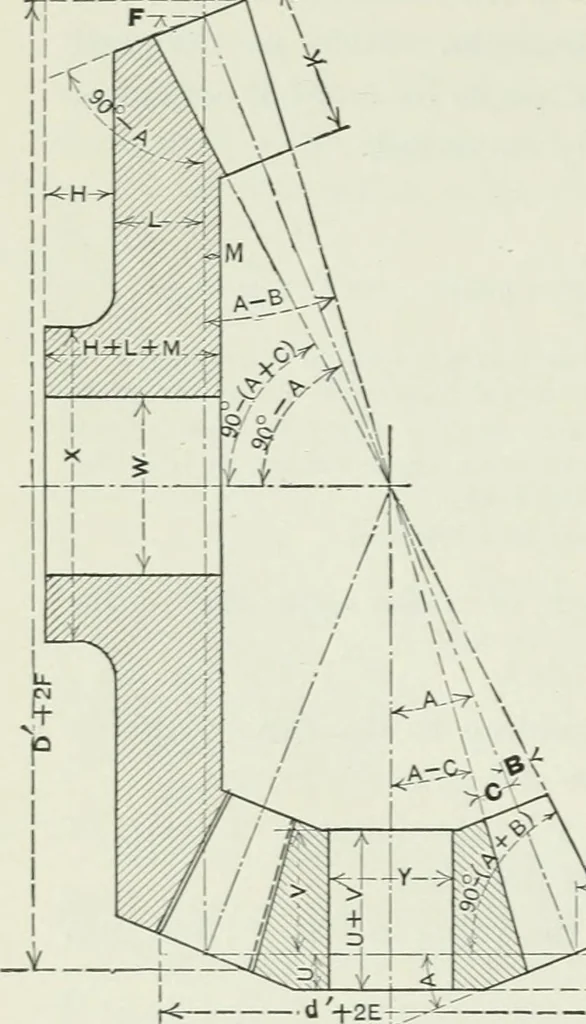

pinion, or by dividing the value in 7 by the number of teeth in the gear. The diameter increment for the pinion is obtained by dividing the value in 5 by P, and tliatfor the gear by dividing the value in 8 by P. The value of the angle C may be determined with sufficient accuracy by making it | of… … d+2E-; Fig. 26. PEOPORTION OF PINION TO GEAR. PINION. GEAR. A. B. 2 E. 900 —A. B. 2 F. CenterAngle. Angle Increment. Divide by n. Diameter Increment, Divide by P. CenterAngle. Angle Increment Divide by N. Diameter Increment Divide by P. 1. 2. 3. 4. 5. 6. 7. 8. 1 1 1.000 45. 80.5 1.414 45. 80.5…
