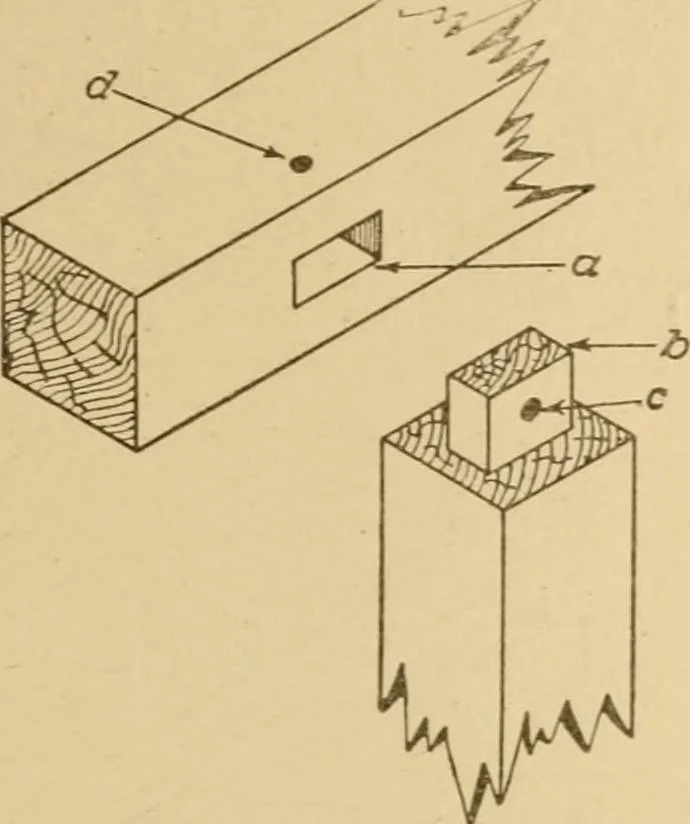

28and 29. It is similar to tlie square mortise-and-tenon joint, hav-ing a similar mortise and tenon, but these are cut in a slightlydifferent way. In Fig. 28 the tenon a is cut in the end of theinclined uiece and fits into the mortise h cut in the other piece. 38 CARPENTRY 31 In Fig. 29 the mortise…
