Cyclopedia of architecture, carpentry, and building : a general reference work (1912)
American Technical Society · Chicago : American Technical Society · leaf 89

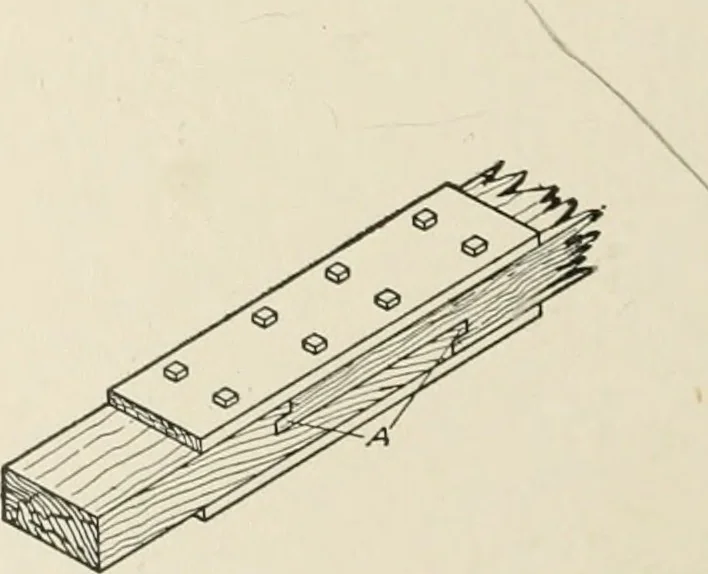

Fig. 57. Beveled Splice Fig. 58. Halved Splice withFish Plates and Bolts Whenever the pieces are cut to fit into one another, as theydo in the halved and beveled splices, the splice is known as a scarfsplice, and the operation of cutting and joining the parts is called 66 CARPENTRY 57
Architecture · Building
