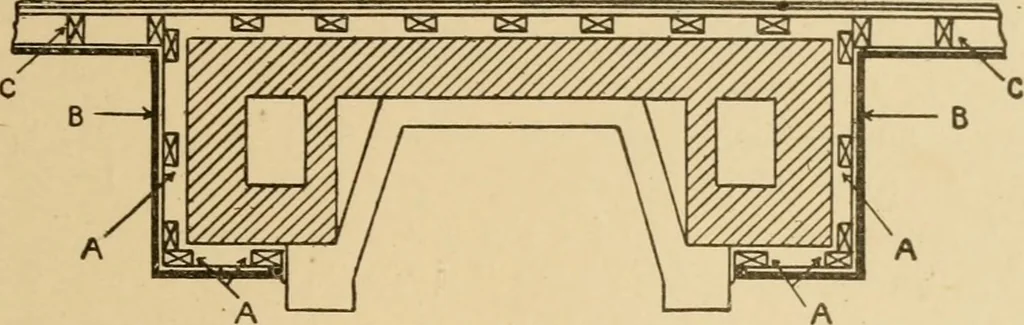

in plan in Fig. 83. A A arethe furring studs, B is the plastering, and C C the studding inthe outside wall. The arrangement without the furring wall isshown in plan in Fig. 82. If there are any openings in thefurring wall such as fireplaces, or thimbles for stove pipes, itis necessary to frame… … Fig. 83. Furring Wall around Chimney. Masonry Walls. If the outside walls of the building are ofbrick or stone, a wooden furring wall is usually built justinside of the outer wall; this furnishes a surface for plasteringand for nailing the inside finish. The studding for these walls istwo-by-four…
