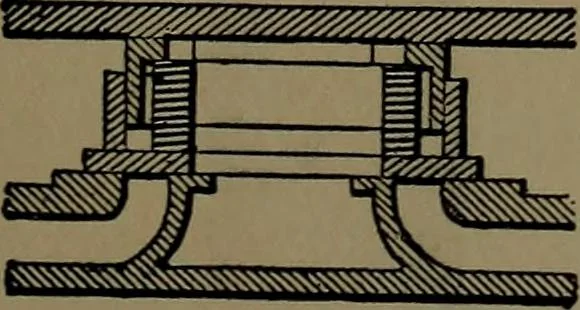

238. SINGLE D SLIDE VALVE,with lap. The length of the valve overthe length from outside to outside ofsteam ports is double the lap. … 239. BALANCED SLIDE VALVE.—A ring in a recess of the valve rides againstthe steam chest cover, held by a spring. 72 STEAM POWER.
