Cyclopedia of architecture, carpentry, and building : a general reference work ... (1907)
American School of Correspondence · Chicago : American Technical Society · leaf 93

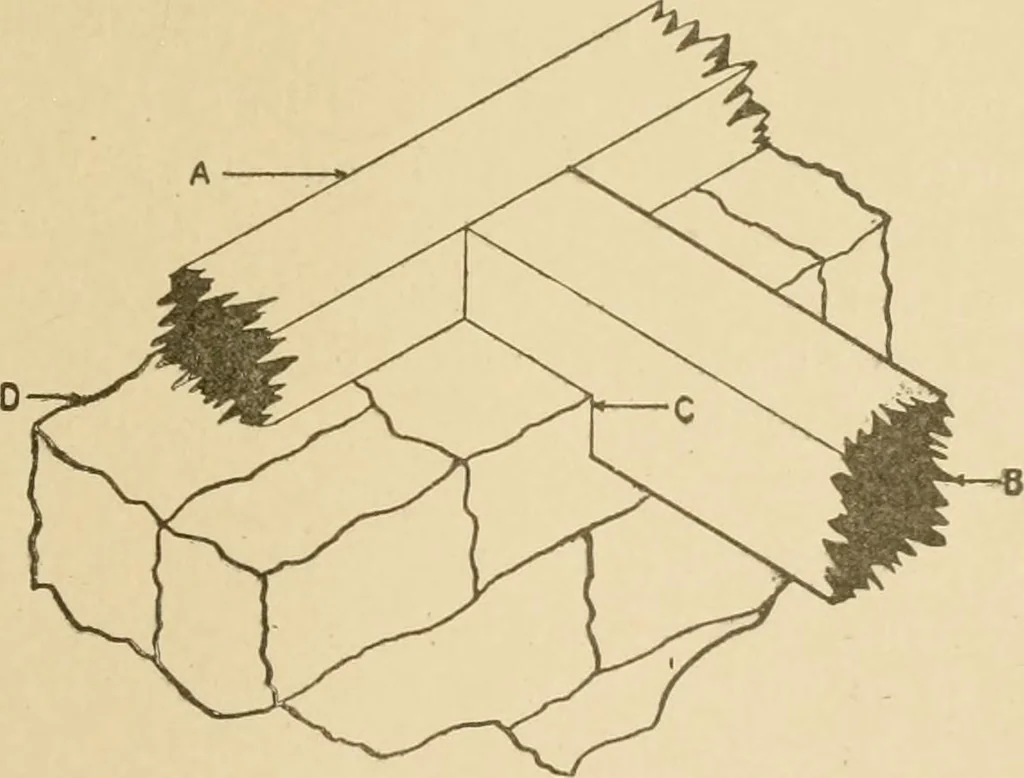

Fig. 102. Framing of Girder into Sill. Fig. 104. Joists Sized Down. must be supported by the wall independently. Holes are left inthe wall where the girders come, the latter being run into the holes,and their ends resting directly on the wall, independent of the sill. … Fig. 103. Framing of Girder into Sill. This is not very good construction, however, because the floor isnot tied together as it is when the girder frames into the sill.The first method is the best and is the one in most commonuse. The girders serve to support the partitions as well as to sup-port…
Architecture · Building · Carpentry
