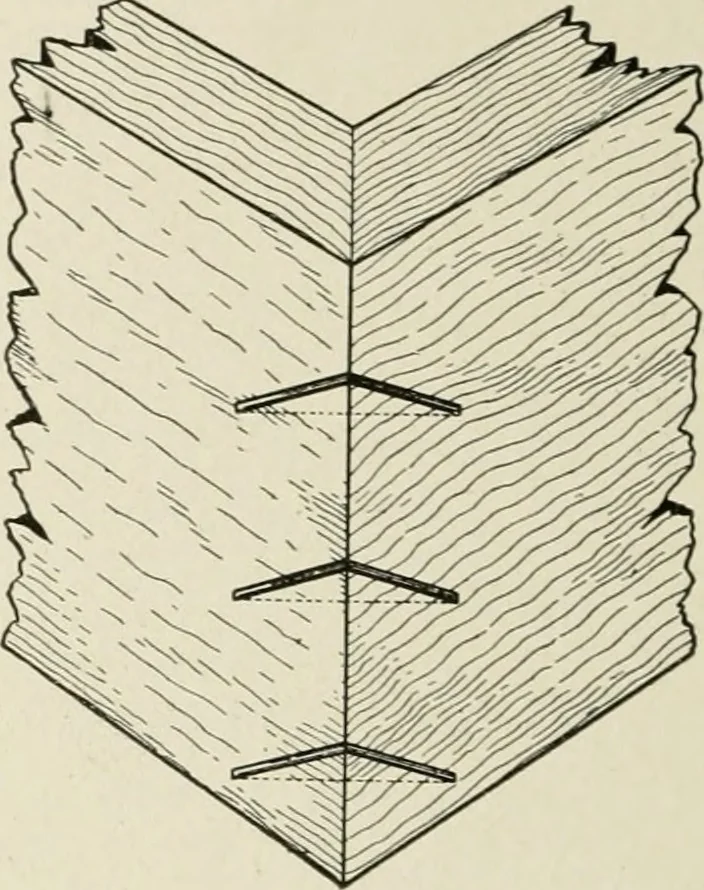

Fig. 79. Mitered Joint KeyedSquare Fig. 80. Mitered Joint KeyedDiagonally pieces which are to be joined is cut with mortises to receive thetenon and the haunch in the first piece. Fig. 81 shows the simplestform of simple tenon joint, but there are many variations of this, two of which are shown in…
