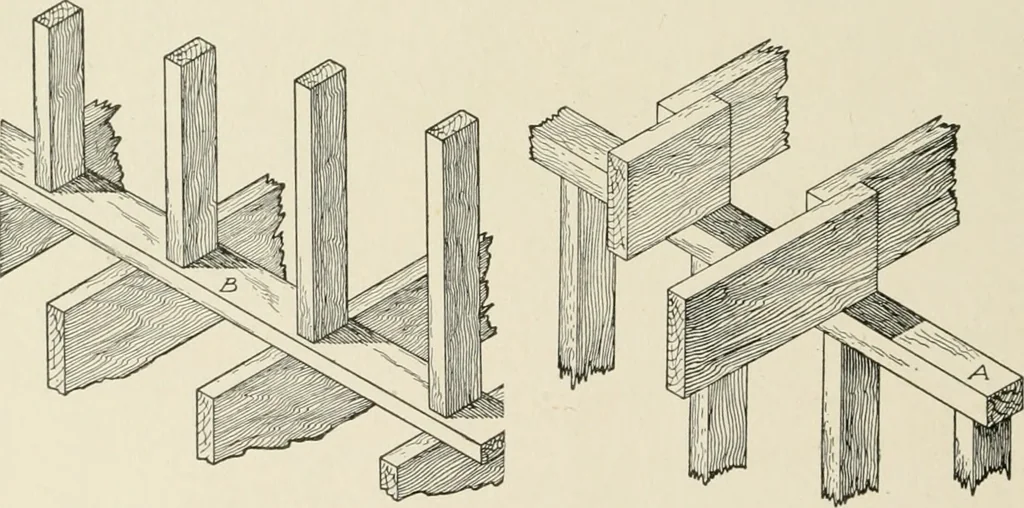

it projects somewhat on eachside and gives a nailing surface for the plasterers grounds and for theinside finish. It is usually made about 2 inches thick and 5| incheswide, when the partition is composed of 4-inch studding, and thisleaves a nailing surface of f of an inch on each side. The sole… … Fig. 124. Partition Framing Showing Sole Fig. 125. Partition Framing Showing Cap floor beams of the floor above, the cap may have to be made 3 oreven 4 inches thick, and some architects favor the use of hard woodsuch as Georgia pine for the partition caps. The cap is shown at A,Fig. 125. Bridging.…
