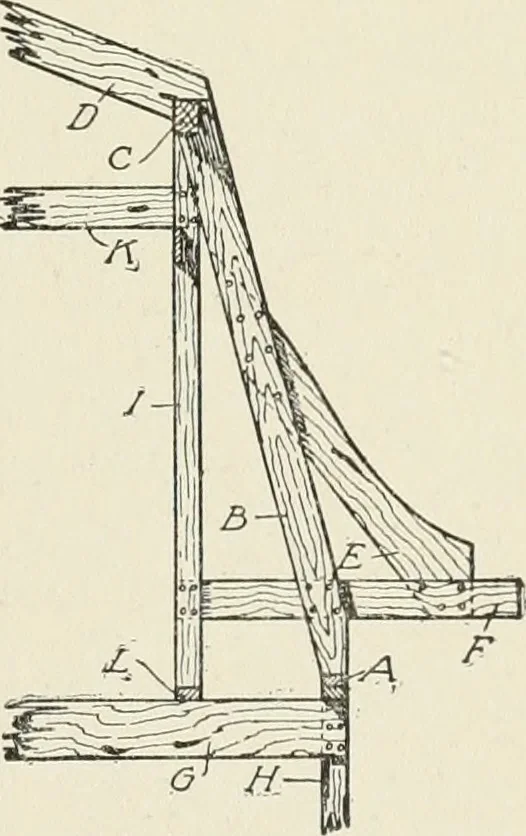

terend of the deck rafter D which is nearlyhorizontal. The piece B is a piece of stud-ding, 2X4 inches to 4X6 inches in size,depending upon the size of the roof. It sup-ports the whole weight from the rafters,carrying this weight to the main wall plate and thence into the walls of the building.… … Fig. 1S7. Framing forMansard Roof 141 130 CARPENTRY
