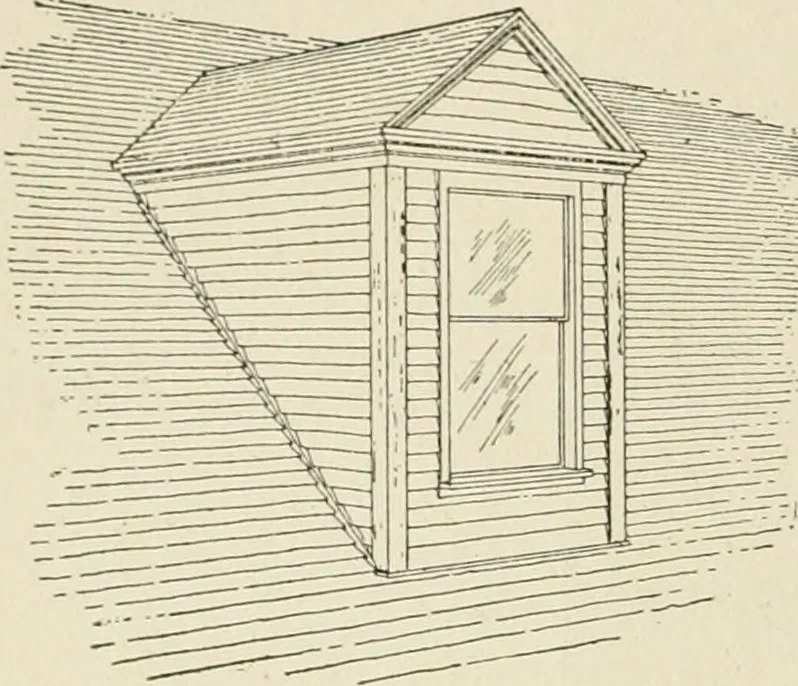

Fig. 1S7. Framing forMansard Roof 141 130 CARPENTRY … Fig. 188. One Form of Dormer Window bottom it is secured to the lookout F, which also forms a support forthe projecting cornice. The floor joist G is supported on a ledgerboard II, or it may rest directly on the plate A. The piece of stud-ding I is merely a furring studto form the wall of the…
