Cyclopedia of architecture, carpentry, and building : a general reference work (1912)
American Technical Society · Chicago : American Technical Society · leaf 299

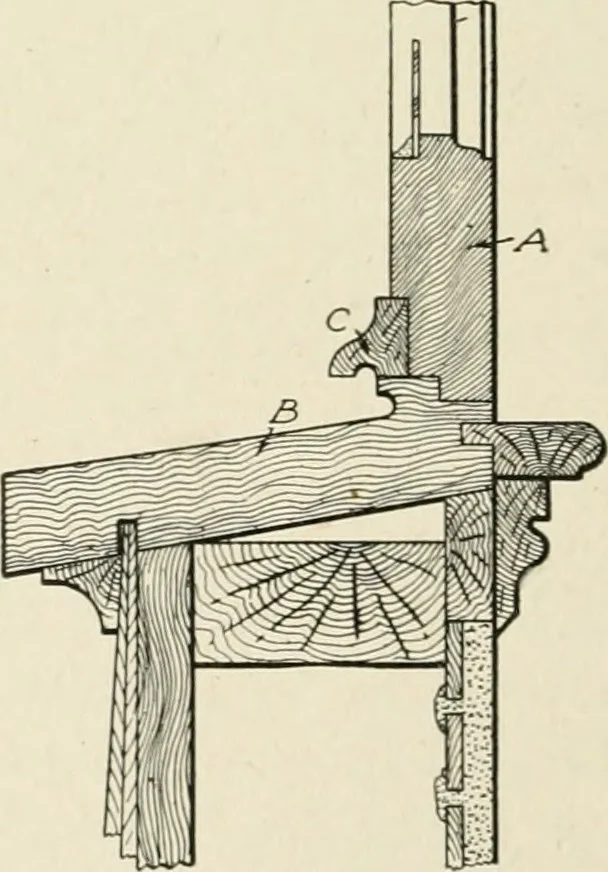

Fig. 32G. Another ConstructionSimilar to Fig. 325. Fig. 327. Vertical Section Through Bottom of Casement Window Opening In outside of the frame, while Fig. 324 shows a sill suitable for a sashplaced, as shown in Fig. 321, nearer the inside of the frame. Inthis figure, E is the sash and D is the…
Architecture · Building
Internet Archive · Kelly Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
