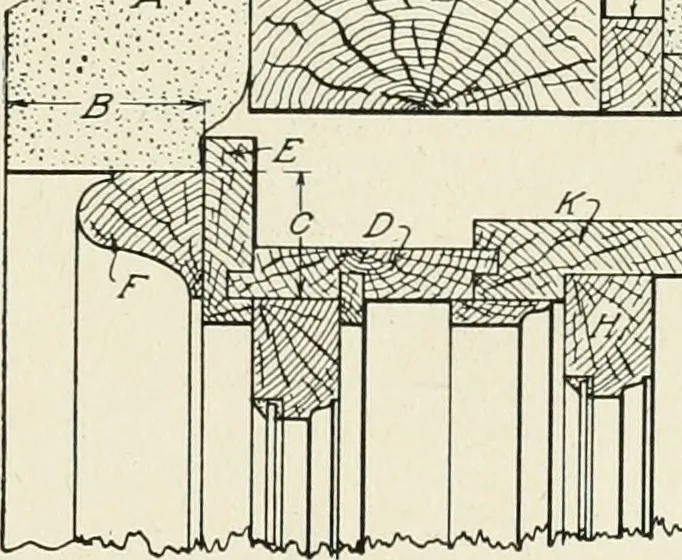

ck wall. At A is the masonry lintelwhich covers the masonry opening. It is usually of stone. Thedistance B is the same as the distance B in Fig. 337 and the distanceC is also the same as the corresponding distance in Fig. 337. D isthe yoke, the same as for a window in a frame wall, with the… … Fig. 33S. Section through Head of Double-Hung Window 247 236 CARPENTRY 337, with the piece K arranged to receive it and also to receive theedge of the inside architrave L. M is the furring on the masonrywall, and N is the lathing and plastering, the plastering being cov-ered by the architrave L.…
