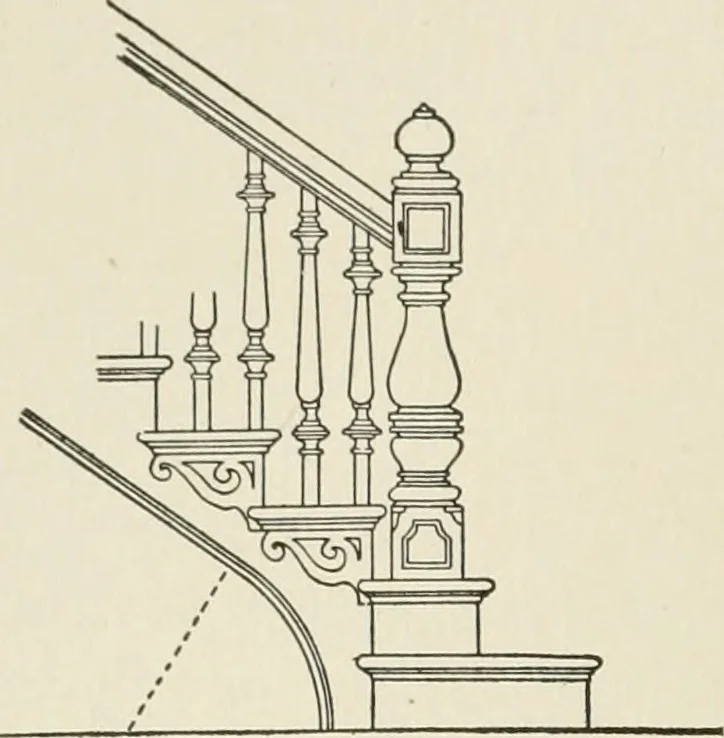

Fig. 47. Fig. 48. Methods of Forming Bullnose Steps. the tenon of the newel is marked on the upper step. The section (Fig.53) shows the manner in which the blocks are built up and the neweltenoned into them. 295 32 STAIR-BUILDING … Fig. 49. Side Elevation of Open-StringStair with Bullnose Steps. The newel, Fig. 49, is rather anelaborate affair, being carved at thebase and on the body, and havinga carved rosette planted in a small,sunken panel on three sides, the railbutting against the fourth side. Open-Newel Stairs. Before…
