Cyclopedia of architecture, carpentry, and building : a general reference work (1912)
American Technical Society · Chicago : American Technical Society · leaf 67

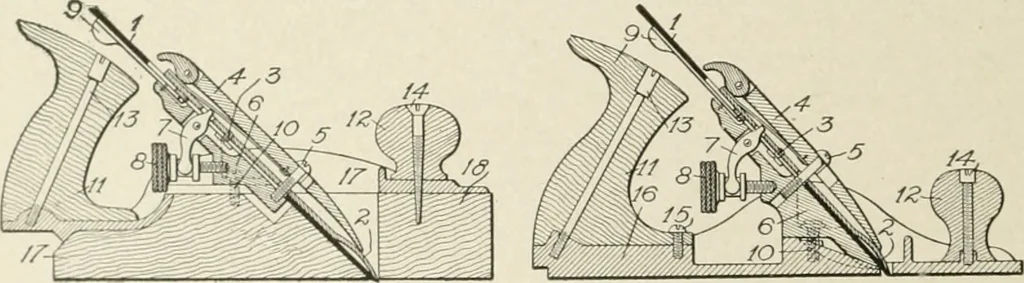

Fig. 29. Iron-Bottom Smooth Plane … Fig. 30. Sections of Wood-Bottom and Iron-Bottom Smooth Planes No. 1 is the plane iron, and should be made of steel, well temperedand ground. It should be throughout of the same thickness. No. 2 is the plane iron cap, also of steel, the purpose of which is toprotect the plane iron. No. 3 is the…
Architecture · Building
