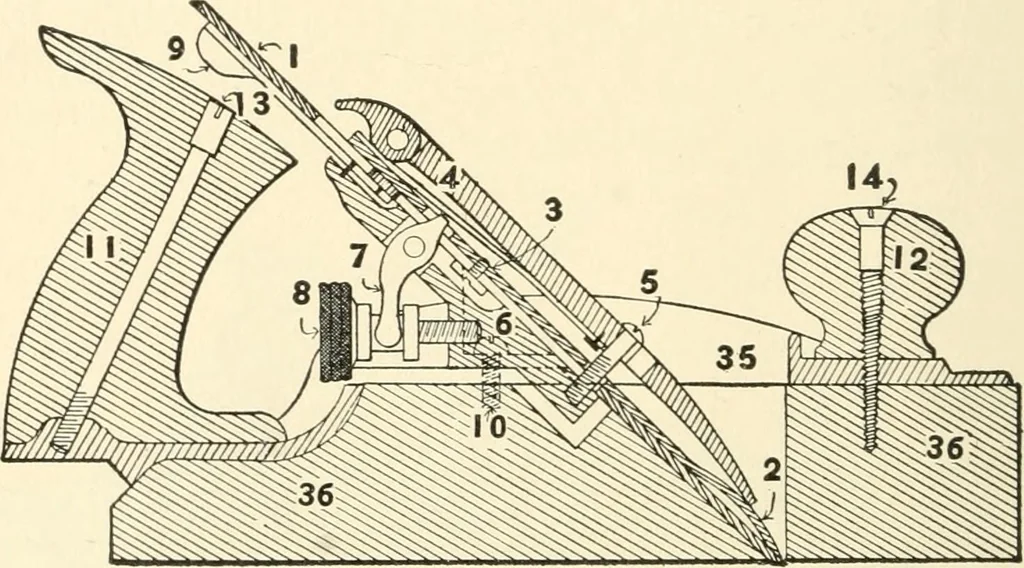

Sectional elevation of Bailey iron plane. List of Parts of Bailey Planes. 1. Plane iron. 2. Plane iron cap. 3. Plane iron screw. 4. Cap. 5. Cap screw. 6. Frog. 7. Y adjustment. 8. Brass adjusting nut. 9. Lateral adjustment. 10. Frog screw. 11. Handle. 12. Knob. 13. Handle bolt and nut. 14. Knob… … Sectional elevation of Bailey wood plane.Fig. 40. FOR HOME AND SCHOOL 51 p. I—CD
