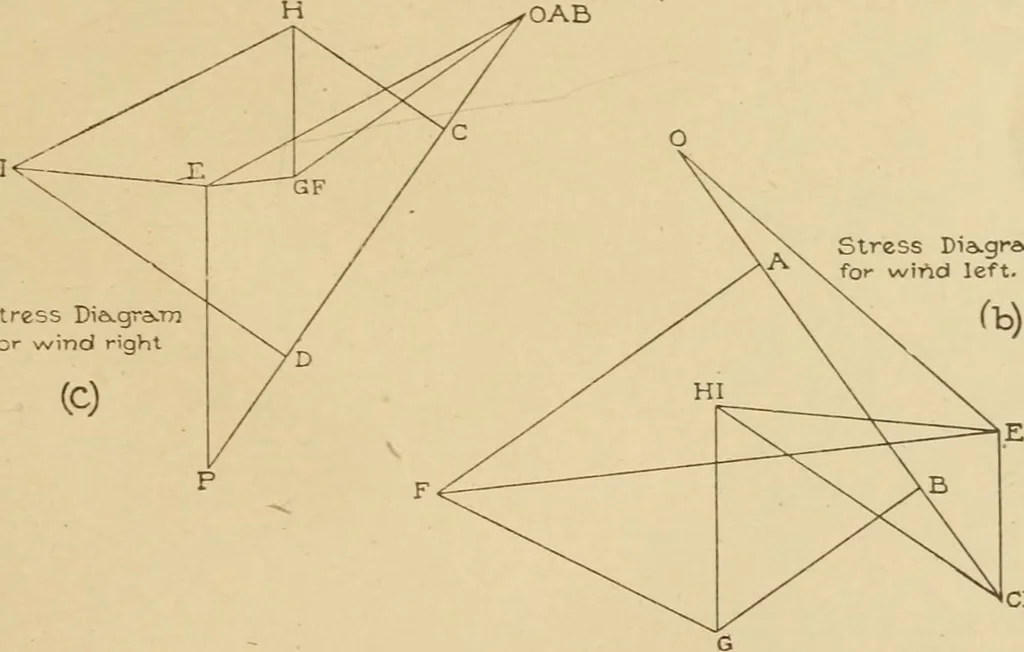

Pright, 636o T Stress Dia^gra.Trj for svind right Stress Dia.grA.mfor wiAd left. … CDP Fig. 29. FE (6.250 pounds compression) represents the stress in/*(?.Since EG = 0, the wind produces no stress in member (je. At joint (5) three members are connected together and thereis no load. The sides of the polygon for the joint must be parallel 179 46 STATICS to the members joined there.…
