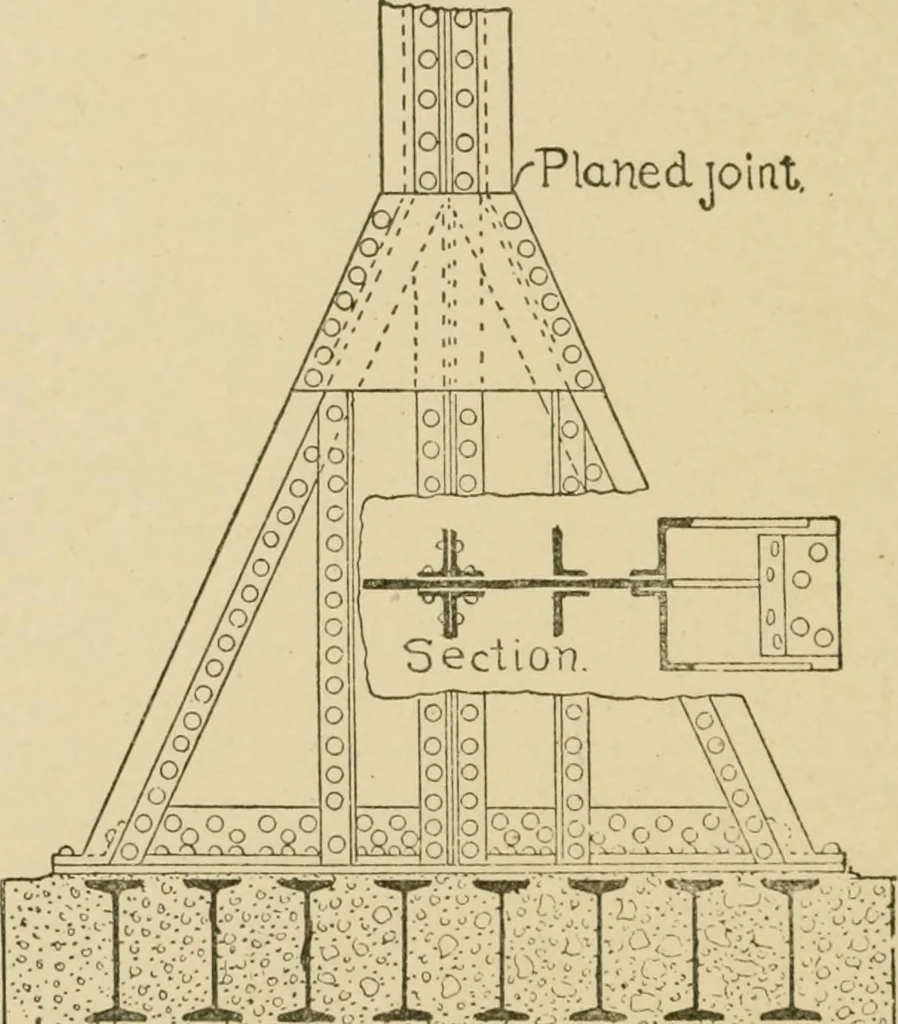

ing continued. Spliced inthis way the pile is deficient in lateral stiffness, and the upper sectionis liable to bounce ofF while driving. It is better to reinforce thesplice by flattening the sides of the piles and nailing on with, say, 8-inch spikes four or more pieces 2 or 3 inches thick, 4 or 5… … 0-,i,-c A^rc^VvQ ■ - Vo U--O.P--.C ■■•<^.•:v-^-/r■•■•V <-<^;-o--i-yi:c^---^ Fig. n. ConcrPit\ and Steel I-Beams. I-beams at rigiit angles to the face of the wall. In the case of hca\7piers, the beams may be crossed in two directions. Their distanceapart, from center to center, may vary…
