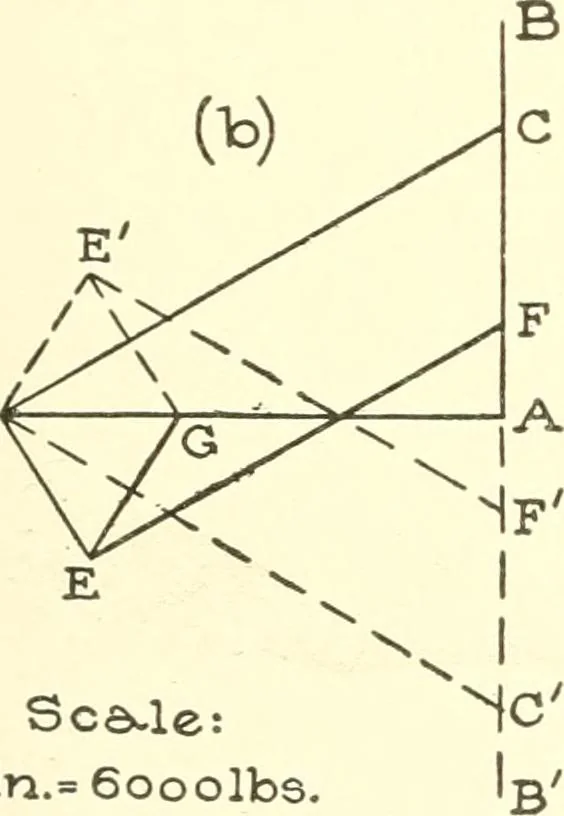

(Fig. 21a) refers to themember 12 and CD should be used tostand for the force or stress in thatmember. 25. Polygon for a Joint. In draw-ing the polygon for all the forces at ajoint, it is advantageous to represent theforces in the order in w^hich they occurabout the joint. Evidently there arealways… … Scdwle:lin.= 6ooolbs. Fig. 21. 167 34 STATICS A force polygon for the forces at a joint in which the forces arerepresented in either order in which they occur about the Joint iscalled a polygon for the joint, and it will be called a clockwise orcounter-clockwise polygon according as the order…
