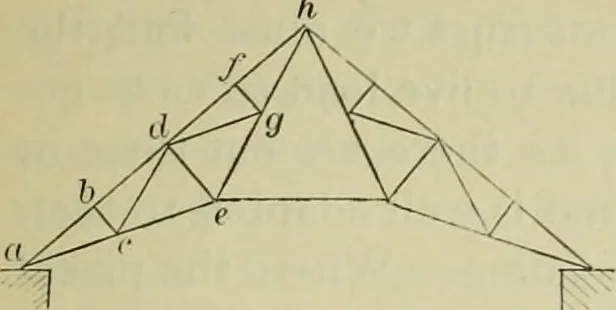

. The struts be, de, etc., are placed normal to the roof. These with the upper chord aremade either of wood or iron.The other members are ties andare made of iron. Fig. 62. Fig. 62 is a common form forwooden trusses. The verticals are iron tie-rods. A special diagram for this foim of truss…
