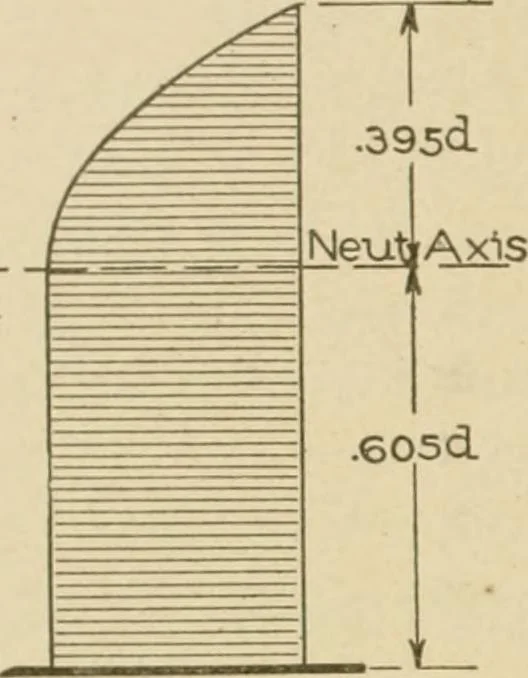

the beam, may berepresented by the diagram in Fig. 43.If we ignore the tension in the concretedue to transverse bending, the shear willbe uniform between the steel and the neu-tral axis. Above the neutral axis, theshear will diminish toward the top ofthe beam, the curve being parabolic. If the… … Fig. 43. .(15) b {d - x) In the above case, the ultimate total shear V in the last inch atthe end of the beam, is 39,840 pounds. Then, V = ,-(.- i„^ = 153.5 pounds per square inch. The agreement of this numerical value of the unit intensity of thevertical shear with the required bond between the…
