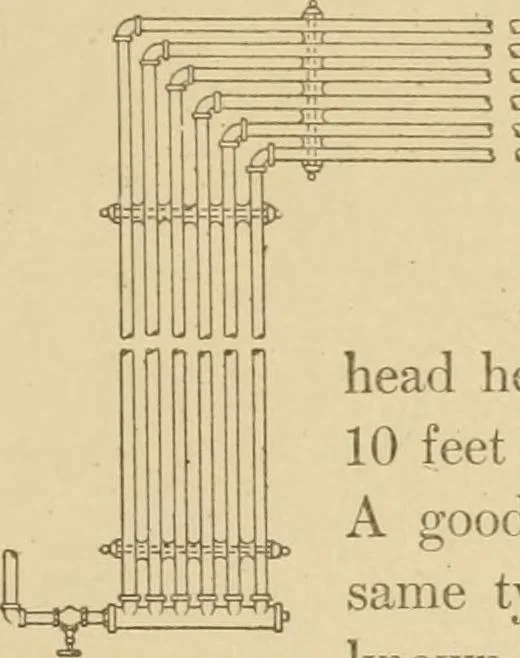

tees or manifolds, is illustrated 146 STEAM AND HOT WATER FITTING 13 in Fig. 39, Part I (Heating and Ventilotion). The long runs of suchcoils rest on book plates (Fig. 13); the short pipes near the corner, onexpansion plates (Fig. 14), on which the pipes are free to move whenthe long pipes expand.…
