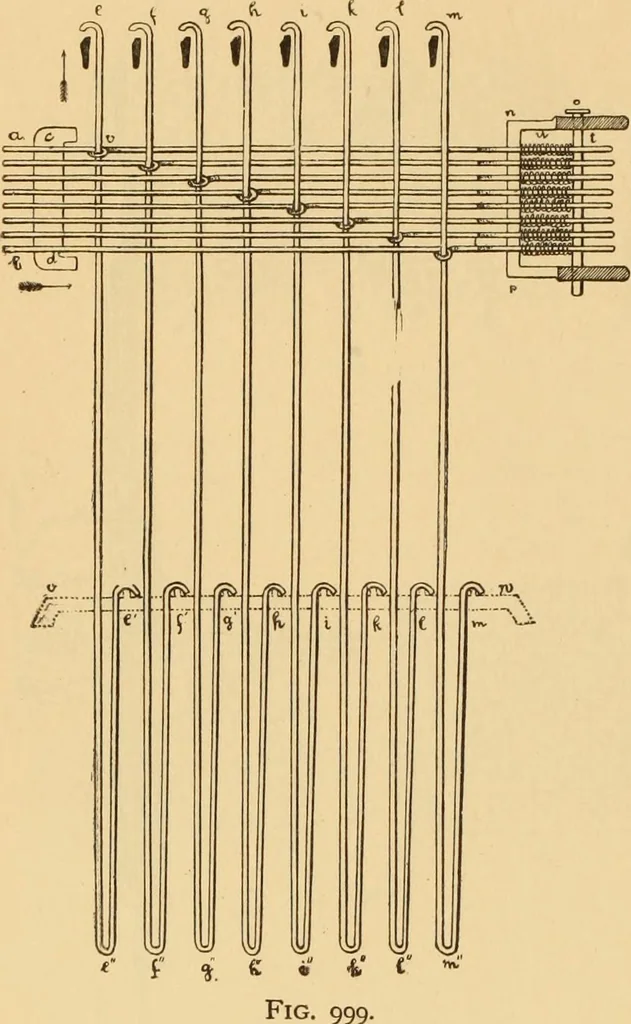

s. 10. The Jacquard harness. In Fig. 999 we give a clear understanding of the principle of the construction of a Jacquardmachine by means of the sectional cut of one cross row in a 200 Jacquard machine, containing8 hooks, (representing an 8-row-deep machine), illu.strating by it the arrangement of… … ?51 hooks are held in their required places by the eyes of the needles (see place v at hook i) throughwhich the former are passed. The needles rest with their heads a to b, in the needle-board, extending outside, towards thecylinder, for about ^ inch. The rear part of the needle—the loop—is passed…
