Cyclopedia of architecture, carpentry, and building : a general reference work (1912)
American Technical Society · Chicago : American Technical Society · leaf 421

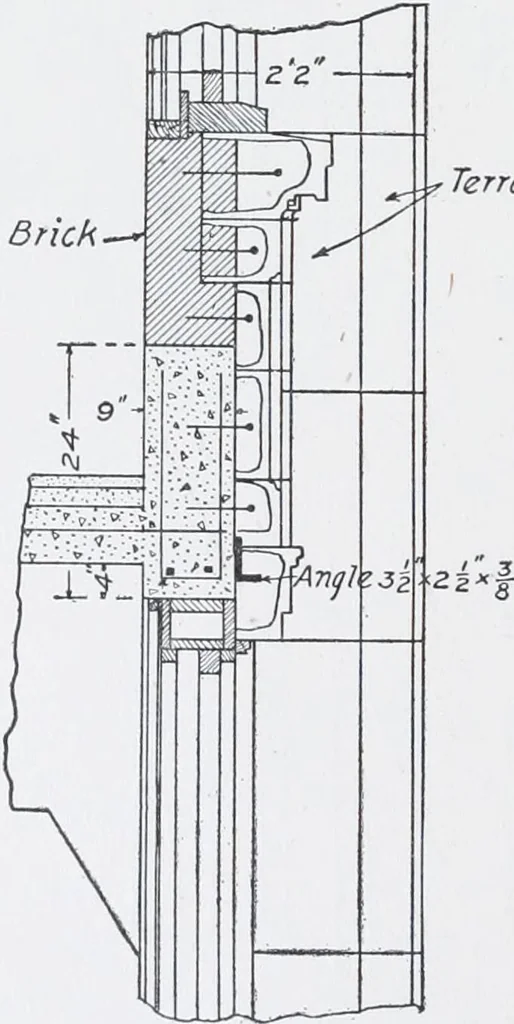

Fig. 190. Detail of Beams and Girders for Buck Building, Philadelphia, Pa. Brick … Terra Cotta Fig. 191. Wall Beams, Buck Building,Philadelphia, Pa. above the structural steel, andalso the columns in which struc-tural steel was not required, werein general reinforced with 8 bars1 inch square, in the lower floors;and this amount of steel wasgradually reduced to 4 bars 1inch…
Architecture · Building
Internet Archive · Kelly Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
