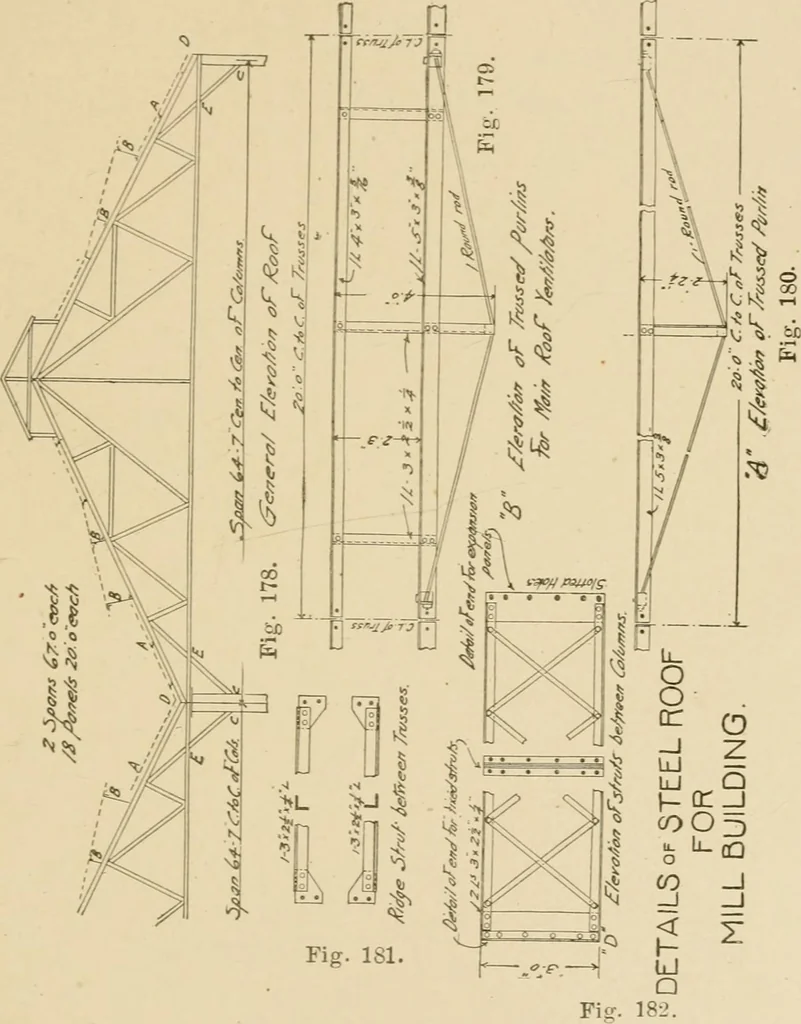

184 STEEL CONSTRUCTION 177 because it allows the coluiun to be placed directly under the h^adinstead of on a bracket which would cause heavy eccentric load-ing. Fig, 17tj shows a partial elevation of the side. The columns … are placed under every other truss only; the intermediate crosstrusses are therefore suppoited by longitudinal trusses shown byFig. 176. These trusses serve also to give the necessary lateralstifPness to the frame. Fig. 177 shows a detail of the ends of these trusses and the 185 178 STEEL…
