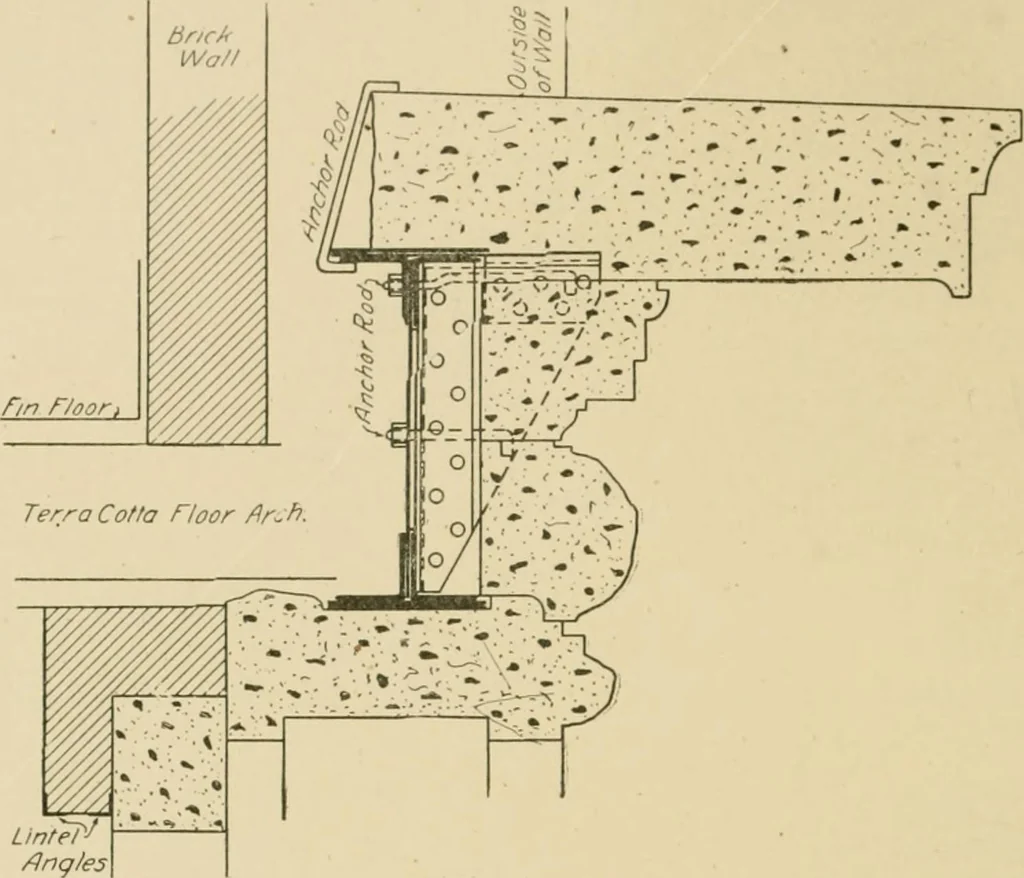

similarly arranged with respect to the column above carriedon the end of the girder. It will be noted that this girder is not sym-metrical about its center line, and therefore the detail of the wholegirder is shown. It should be noted also that the concentration ofloading at one end makes it… … /Angles Fig. 264. tcr of column l)caring where the area of the web alone is suflricientfor the shear. This end being the point of maximum moment, also, isthe reason for the increased flange area here. Floor beams frame to this girder in the same relation as in thecase of the three-web girder shown…
