Architectural engineering. With special reference to high building construction, including many examples of Chicago office buildings (1895)
Freitag, Joseph Kendall · New York, J. Wiley & sons; [etc., etc.] · leaf 125

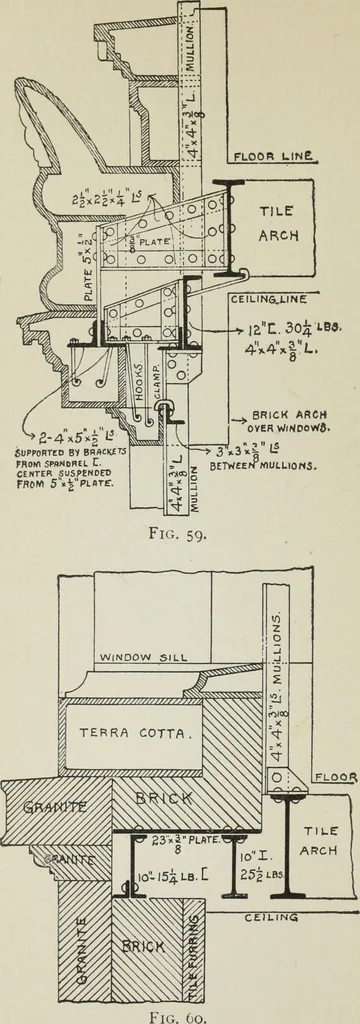

Fig. 58. secured by most careful superintendence, and study in thefield. The general scheme, however, must always be indi*cated on the sprandrel sections, as the holes necessary inthe structural metal-work to receive the anchors should beincluded in the detail drawings of the iron or steel work,… … SPANDRELS AND SPANDREL SECTLONS. 107 were used between the I-beam girder and the outsidespandrel-channel. A rather complicated spandrel section is that indicatedin Fig. 59, taken from the Marshall Field retail storebuilding. The spandrel-beams were here carried by themasonry piers used in the…
Building, Iron and steel
