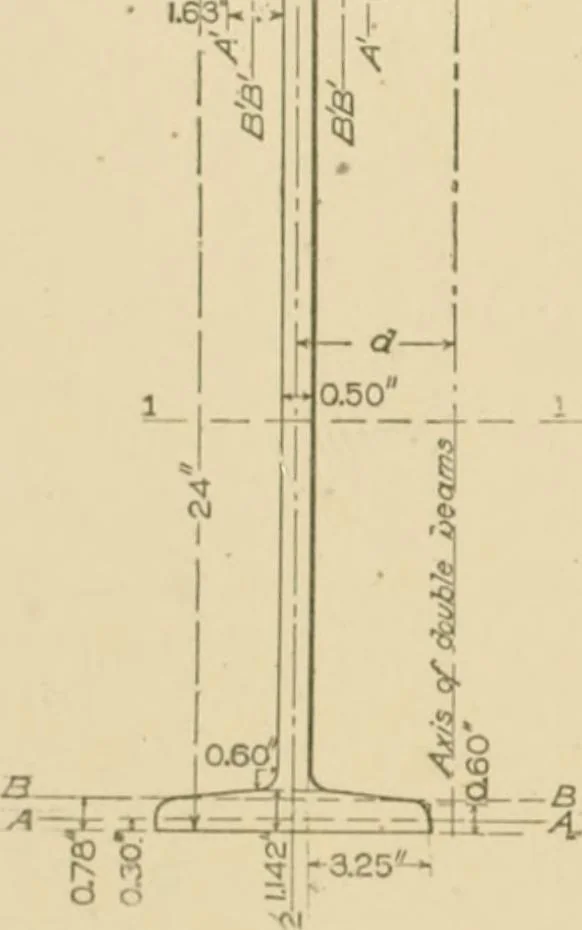

and maximum sizes of the different shapes.These tables are for use in choosingsections to meet the requirements ofdesign, and will be explained in detailin the pages that treat of design of, members in which these shapes are used. These different functions can all becalculated quite.readily, and it… … 40 STEEL CONSTRUCTION 33 Area.Web=(24 —2.284) X .50 ^10.858 Flanges = ^^f + ^^ X 3.25 X 4 = 11.323 1.142 X .50 X 2 = 1.142 12.465 23.323 It will be noticed that the areas of fillets and the rouudings of outeredges are disregarded. These closely offset each other. Weight per Foot. Since a cubic foot…
