Cyclopedia of architecture, carpentry, and building : a general reference work (1912)
American Technical Society · Chicago : American Technical Society · leaf 345

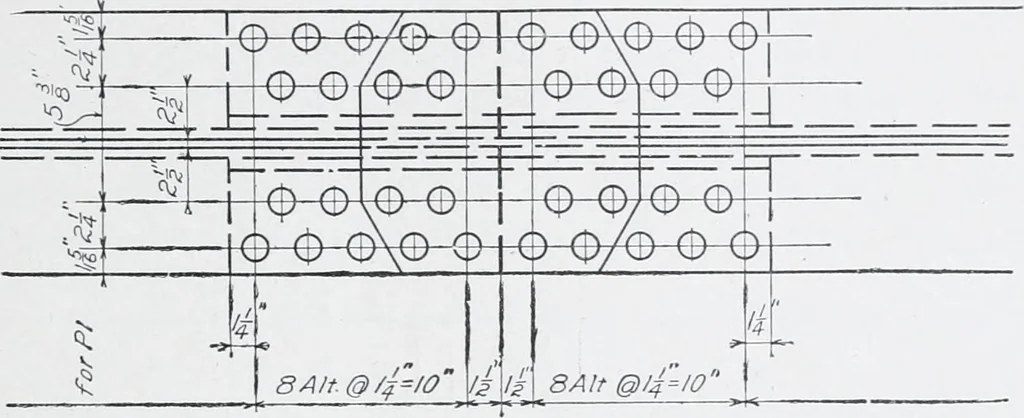

STEEL CONSTRUCTION 267 rounded to fit accurately the fillet of the flange angle, and having thesame gross or net area as these angles. Fig. 253 shows the splice of the top flange of a plate girder. Notethat the angles are spliced by cover-angles and also by cover-plates.In flange splices, provision… … ^^ ,e^efaje£jk.i£sh.£s\sL^L e Ut%k:^ ^Uf Sic
