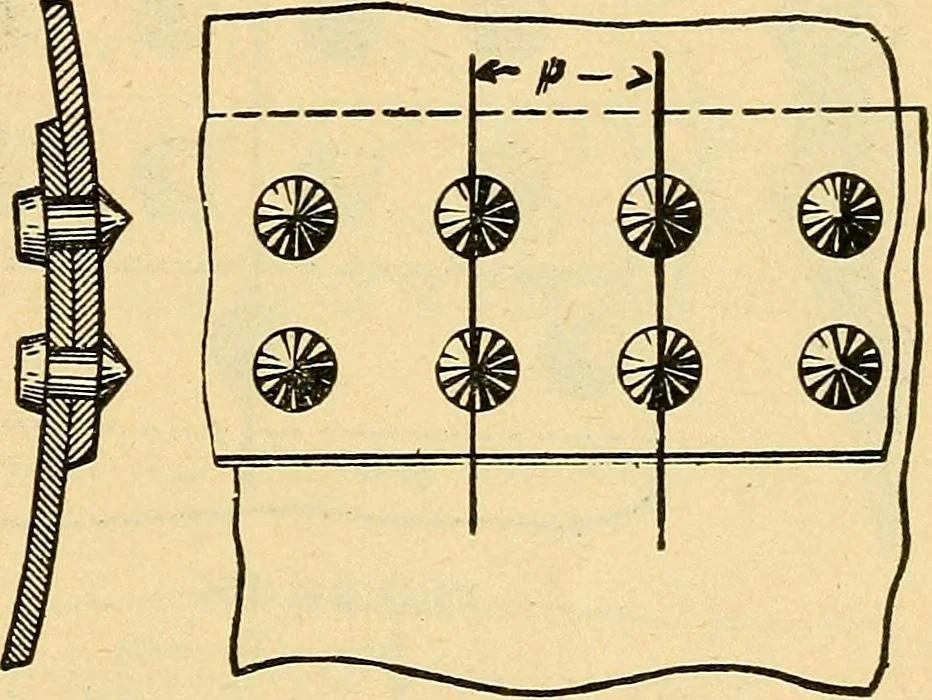

ll holdas with chain riveting,for the reason thatwith either style ofriveting the unit stripof plate has a width equal to the pitch or distance p,Fig. 97.^ The dimensions of the joint under consideration areas follows: P = 3^ in., T = T76- in., D = I in. (which isalso diameter of driven rivet). The… … FIGURE 97. .306 ENGINEERING The crushing resistance of rivets and plate isDx2xTxC = 78,750. It thus appears that the weakest part of the joint isthe net strip or section of plate, the strength of whichis 59,062 and the efficiency = 59,062 x 100 -*- 85,312 =69.2 per cent. A double-riveted butt joint…
