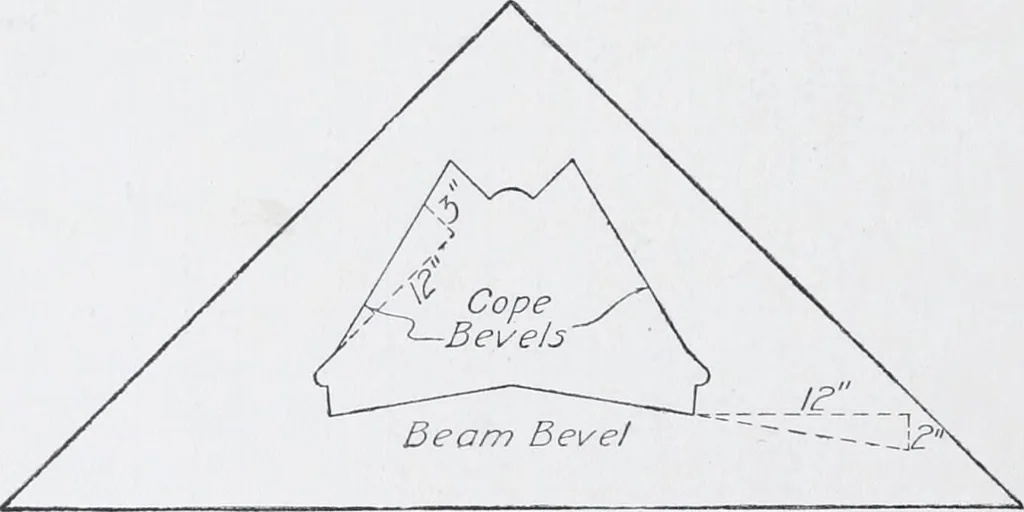

aterials. Instruments. The drafting instrumentsrequired are: A drawing board, T-square, triangles of various kindsas noted below, pencils, scales, erasers and erasing shields, a set ofdrawing instruments, a large linen cover, and half sleeves. The drawing board should be made of soft pine with… … Fig. 3. 45° Triangle with Cope and Beam Bevels inches. A drafting board should not lie close to a table, but shouldbe raised from the table by small legs placed at its upper edge asindicated in Fig. 2. The T-square should be about 40 inches in length and shouldbe of good quality with an amber edge…
