Cyclopedia of architecture, carpentry, and building : a general reference work (1912)
American Technical Society · Chicago : American Technical Society · leaf 430

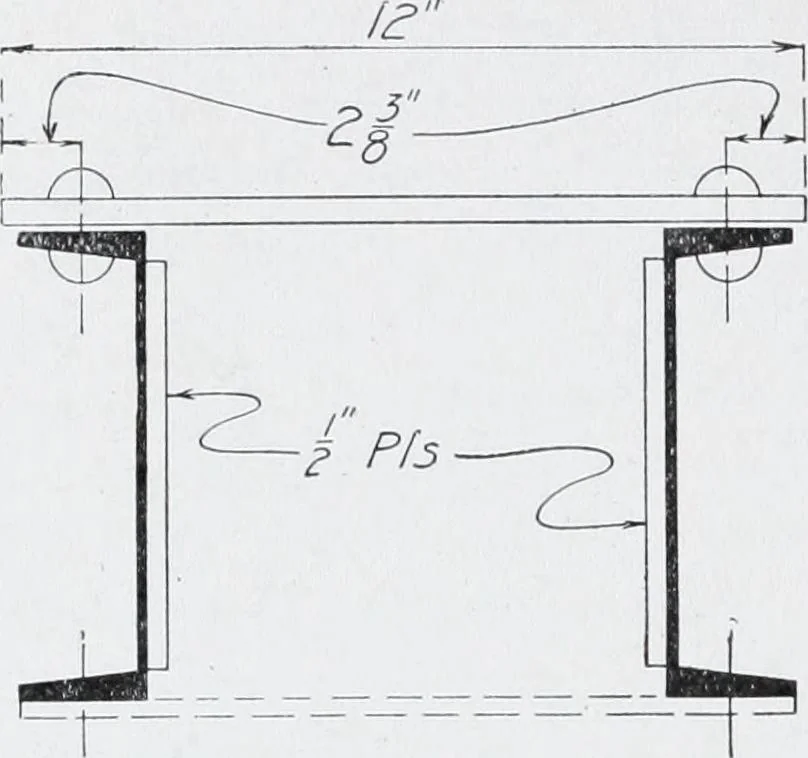

drawing. Dimension and Material No=tation. Proper Placing. A draw-ing may be said to have beencorrectly dimensioned when anydesired necessary dimensions maybe obtained from it without itbeing required that any dimen-sions should be added or sub-tracted or divided in order toobtain the desired… … Fig. 35. Correct Use of Arrow and Line inDimensioning /Z at 4f= 2L5 5 5 ^ • J e—©—©—©—©—& (a) /7 ar 4^ = 2 Ls 3a3x / Q—e—e—©—©—^ -^> (c) (.b) -x~- <> id) Fig. 36, Examples of Arrow-Head Construction and Proper Location of Dimensions 354 STRUCTURAL DRAFTING 41 Fig. 37. Correct Arrow…Architecture · Building
Internet Archive · Kelly Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
