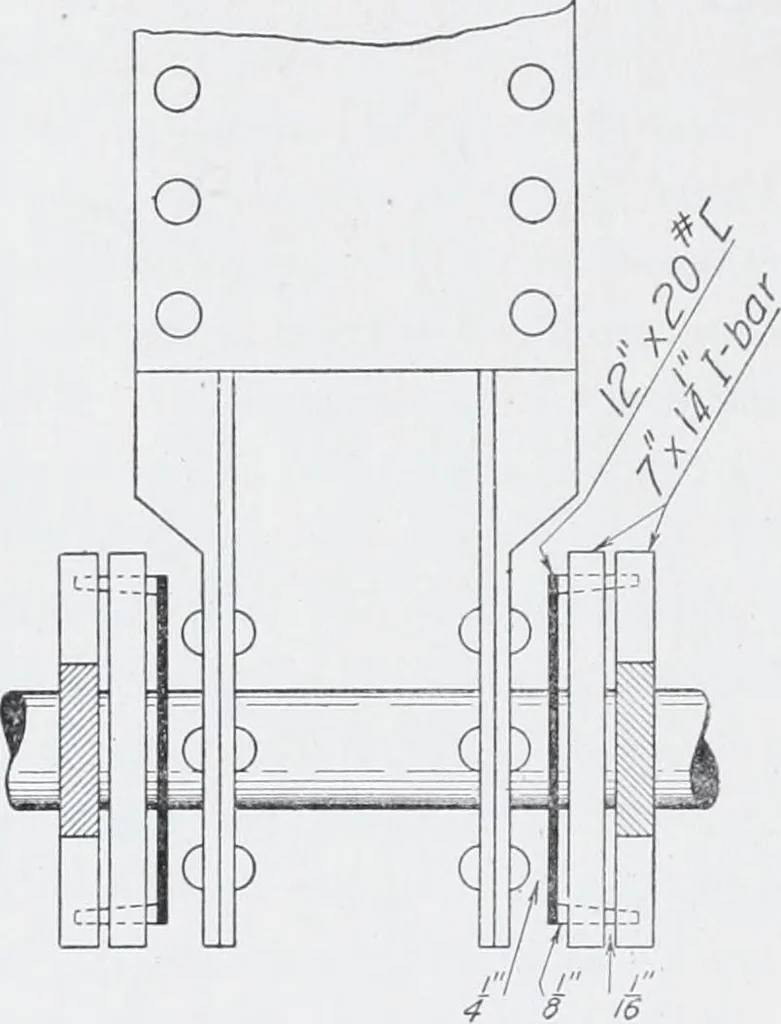

y that on the rivet clearancesis where the novice makes themost of his mistakes. Where the distance betweenthe outer faces of several mem-bers placed together is to be com-puted, it is necessary, on accountof the liability of plates to exceedtheir nominal thicknesses, andrivet heads their nominal… … Fig. 47. Joint Showing Clearance betweenMembers For example, suppose it wasrequired to compute the distance out to out of the members shownin Fig. 47. The clearance would be as indicated, and the distanceD would be: ^=2 (y+ 0.4 +f + i+ 0.28 + I + li+— + li) = 18.485= 18i inches This value would be…
