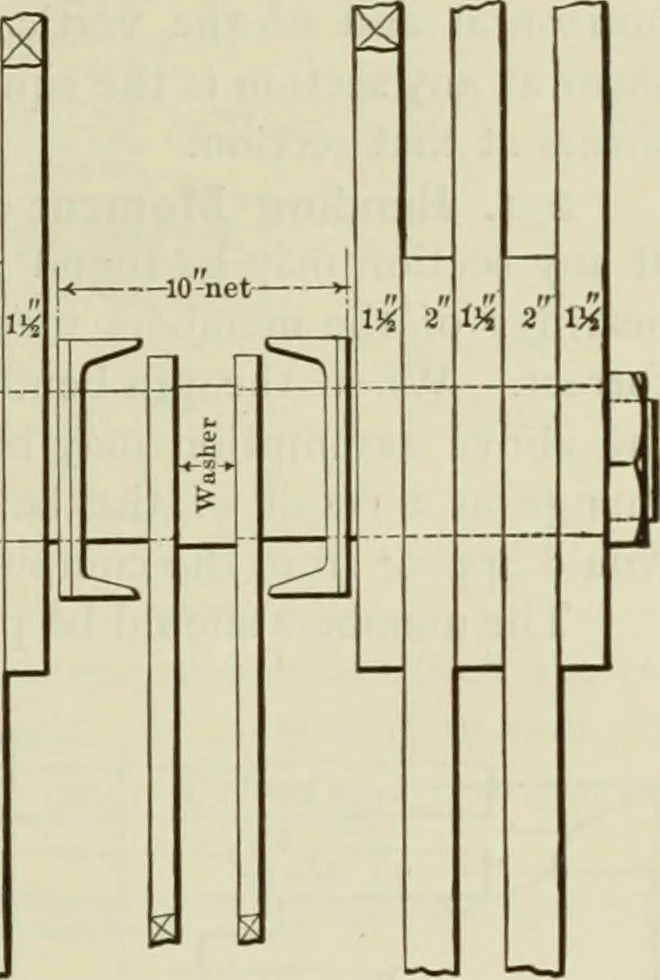

n inchless than the nominal net width. The members on a pin should be packed asclosely as possible. When it is necessary, inorder to reduce the bending moment on the pin,to pack eyebars in pairs, they should be separated *93-at least one half of an inch, to prevent the collection of dirt and water… … Fig. 294. cotter pin shown in Fig. 294 is used. Sometimes both a nut and cotter areused on this style of pin. Lateral pins should always be packed so thatthey will be in double shear. This point is mentioned because it wasformerly, and to a certain extent is now, the practice to use them in…
