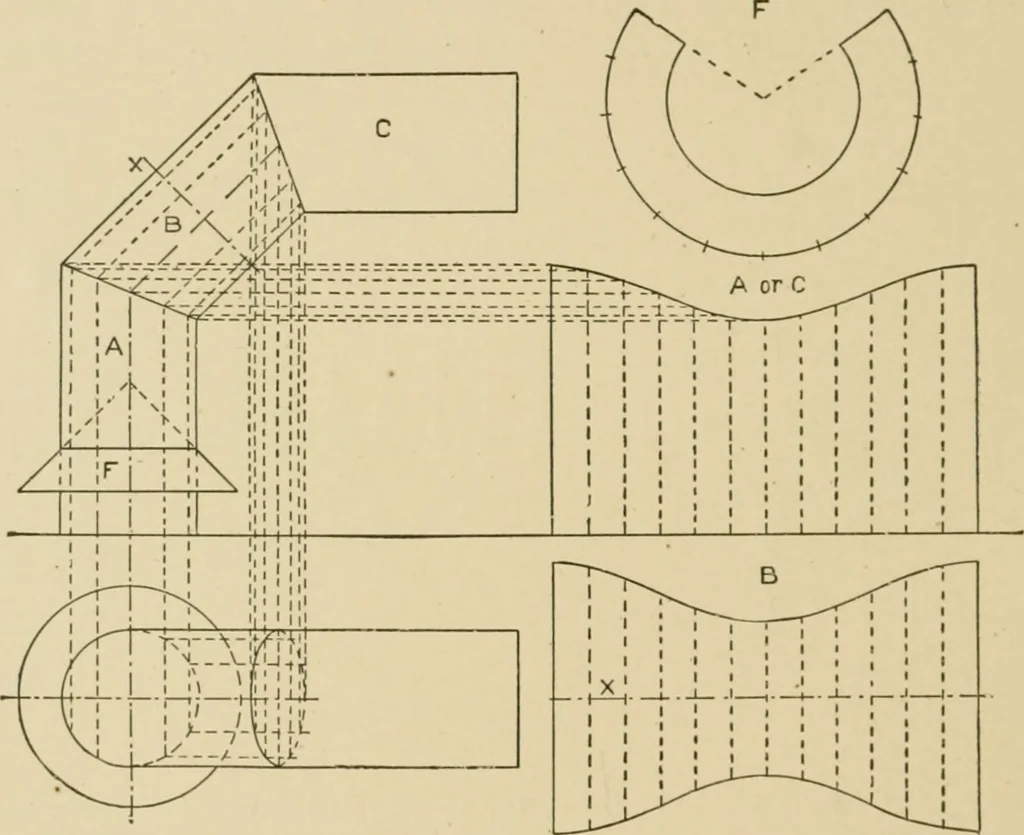

d for Fig. 38, and this is also thedevelopment of C. It should be borne in mind that in developing a cylinder wumust always have a base at right angles to the elements, and ifthe cylinder as giVen does not have such a base, it becomes neces-sary to cut the cylinder by a plane perpendicular to the… … Fig. 39. straight line, and is thei-efore the section from which we mustwork in developing other sections. As B has neitlier end at rightangles to its length, the plane X is drawn at the middle and pev-jtendicular to tlie length. B is the same diameter pipe as C andA, so the section cut by X will…
