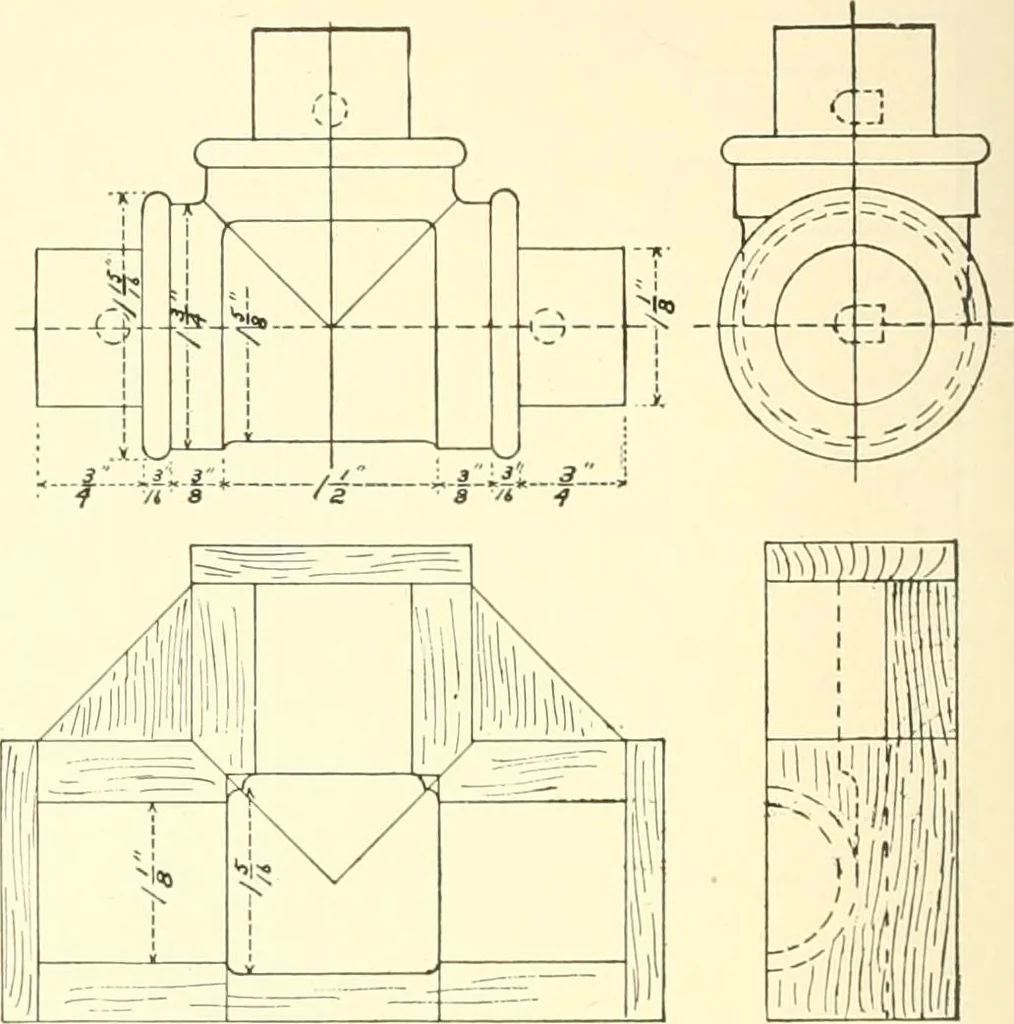

e print, a; the upper and lowerfaces of large core-box black; also hole to take looseprint, a; and that part of the print which goes in thehole; pattern, black; core-prints, red. Pipe Connections A tee pipe connection for 1 in. pipe (Fig. 358). The dimension, 1 in., is the diameter of the inside… … Fig. 358 diameter, allowing -jfV in- all around for reaming theholes true, and xV in. all around (xV in. in all) forthe depth of the thread. The tee is chambered out in the inside to the fulldiameter of the outside of the pij^e, lj% ins. (seecore-box, Fig. 358). PATTERN MAKING
