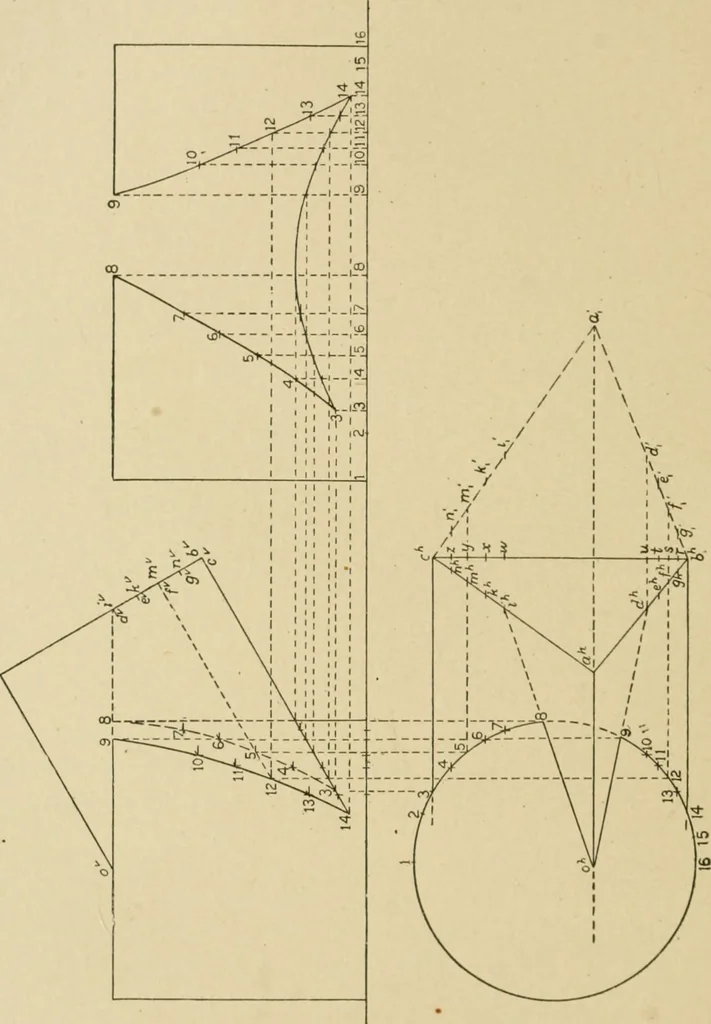

)roduced, if necessary,to find an intersection. , Edge a h pierces the j^lane of the top of the cylinder at point CO … d^ seen in elevation ; therefore the line joining this j)oint with o isthe i:iterseotion of one upper face of the prism with the upper 126 MECHANICAL DRAWING. 35 base of the-cylinder. The only part of this line needed, of course,is within the actual limits of the base, that is o 9. The…
