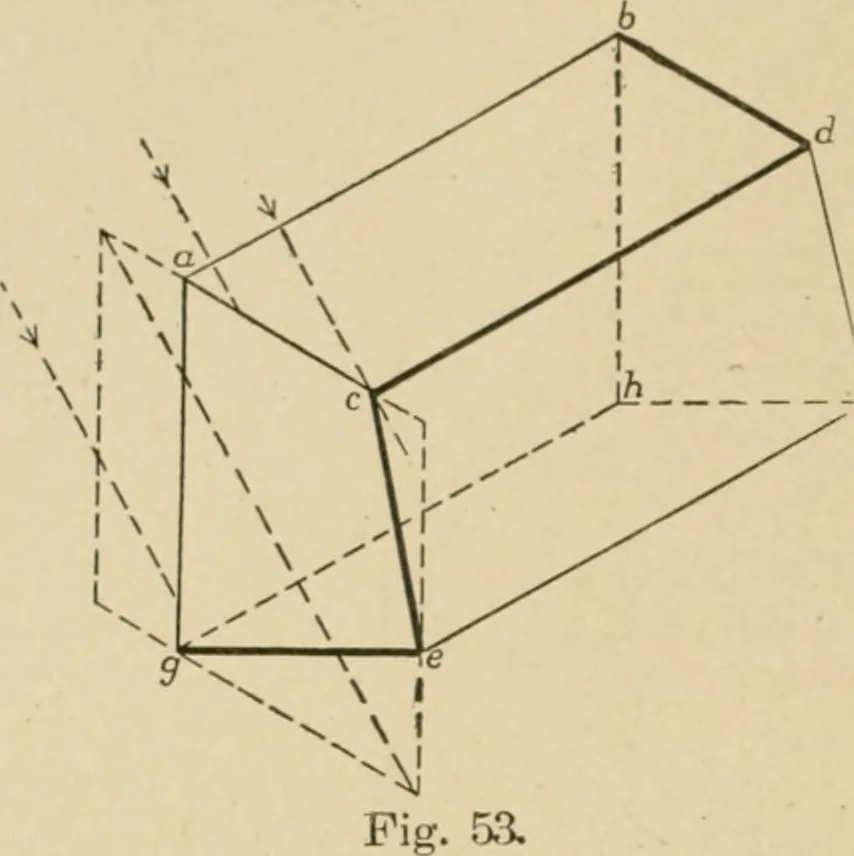

133 42 MECHANICAL DRAWING … In Fig. 52 a i)rism is represented standing on its base, so thatthe projection of the cube diagonal on the base (that is, a T-squaroline) is used to determine the light and dark faces as shown The prism in Fig. 53 has forits base a traiK^zium. TheXjrojection of the ray of lighton this end is…
