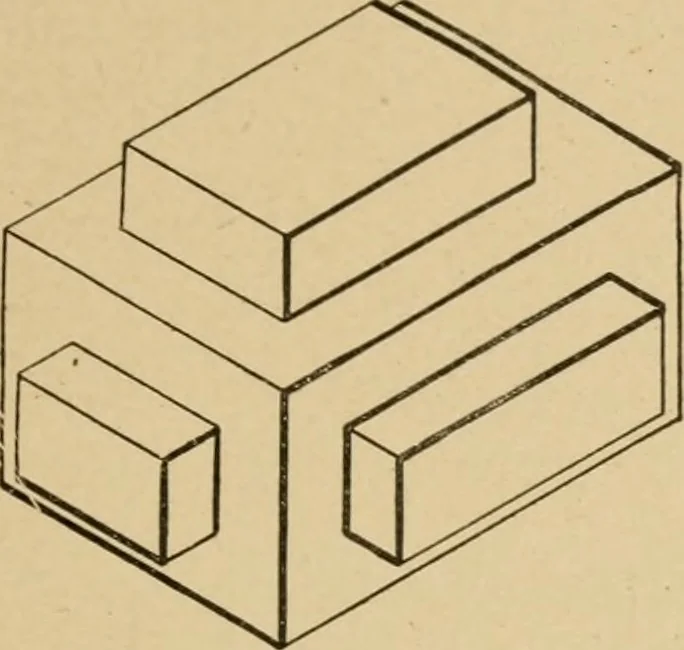

Fig. 54. 134 MECHANICAL DRAWING 43 the end roof be given at A. This shows that the peak of the roof,or the end a of the ridge, will be back from the end wall a distanceequal to the base of the triangle at A. Hence lay off from I thisdistance, giving point a, and join a with h and x. … Fig, 55. m A ^
