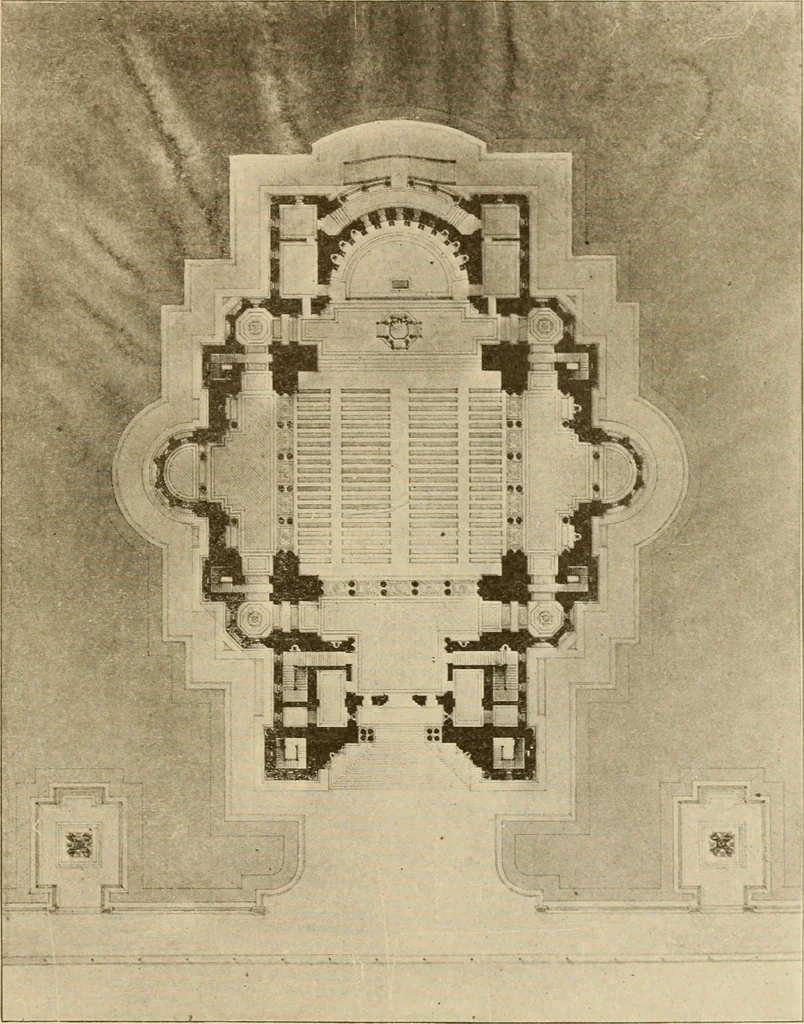

S3> ap ARCHITECTURAL DRAWING 31 the true mass of the openings. Many good designs are greatlyinjured in the rendering by the violent contrast in the grading ofthe openings from dark to light. In the shadow itself it will be found that detail is accented or … Fig. 17. Conventional Method of Rendering Plan. 273 32 ARCHITECTURAL DRAWING brouprlit out by reflected shadows. These sliadows are in a direc-tion opposite to the shadows cast by the sun. If the light isassumed to come in the conventional way, namely at an angle offorty-five degrees from the upper…
