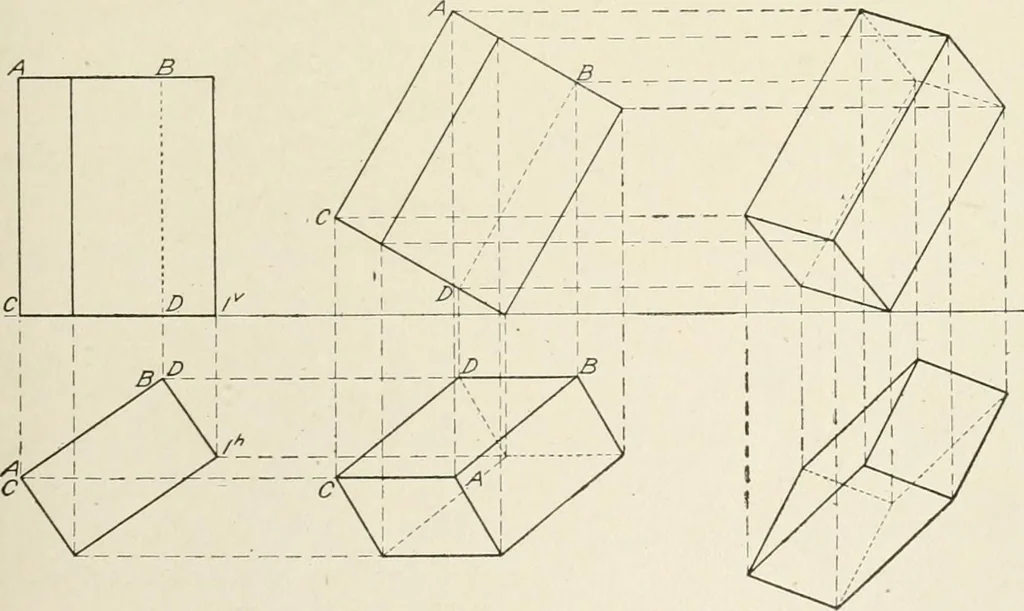

Fig. 114. Views of a Square Prism Showing Effectof Rotating Axis of Prism Rectangular Prism. Three positions of a rectangular prismare shown in Fig. 115. In the first view, the prism stands on its … Fig. 115. Rotated Views of Rectangular Prism base, and its axis, therefore, is parallel to the vertical plane. Inthe second po.sition, the axis is still parallel to V and one corner of 89 70 MECHANICAL DRAWING tlie base is on the horizontal plane, but the prism has been turnedon the line V 1 as an…
