Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 100

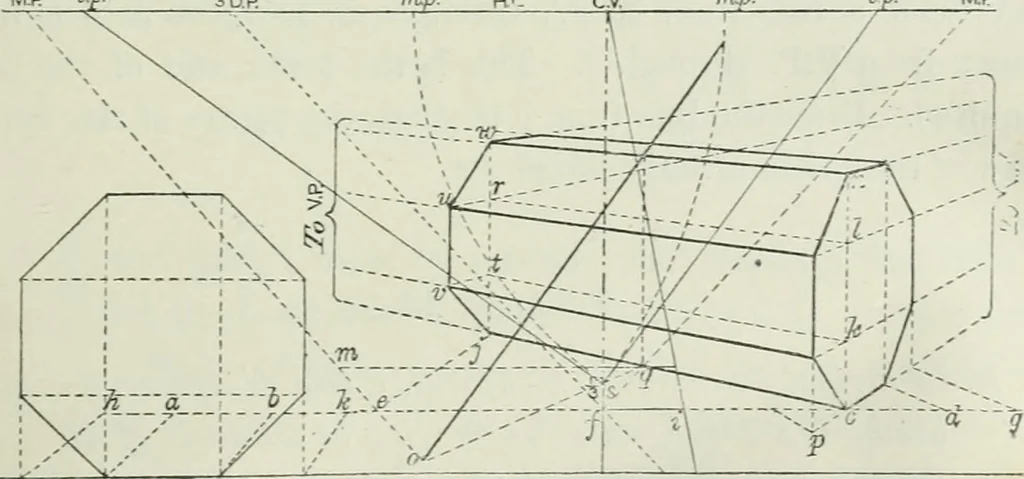

plane; itsnearest angle on t/ie G.P. being 2 from the P.P. and 3 tothe spectators right. 2. Draw a line, indefinite in length, at right angles to the nearer tipjicr edge of the 2^>isni, and piassing through itsmiddle yoint. Tlie loirer end of this line is to meet theG.P. 4 from the nearer lowest… … Fis. 64 Find all the necessary working lines and points (Prob. 12),and the point c of the figure (Prob. 10). Draw an octagon of the required size and obtain the points 78 COMPLETE PERSPECTIVE COURSE chap. h, a, b, k; also the points j>, r, d, (j, as by the methods describedill the preceding…
Perspective
