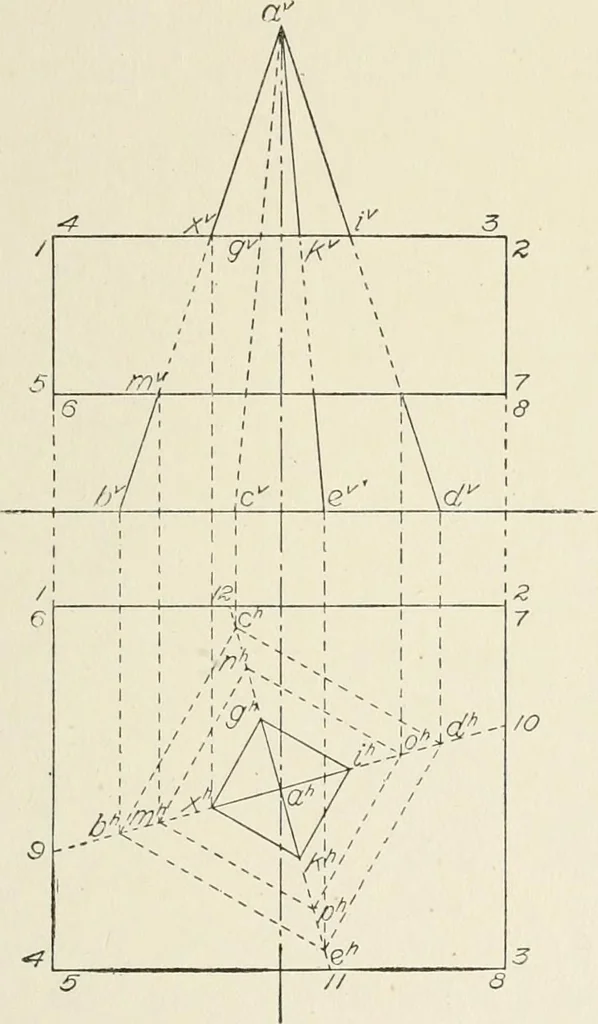

>- h H o ^ 1 o V W q!^ iLife^-.. g MECHANICAI. DRAWING 87 x, and with this as one corner, the square x^ cf^ P- y^ is drawn, itssides parallel to the edges of the base. This square is the intersec-tion of the pyramid with the top of the prism. The intersection of the pyramid with the bottom of… … Fig. 138. Intersection of Prismand PjTamicl the square irJ^ n^ (J -p^ parallel to the base of the pyramid. Thesetwo squares constitute the entire intersection of the two solids, thepyramid going through the bottom and coming out at the top of theprism. As much of the slanting edges of the pyramid…
