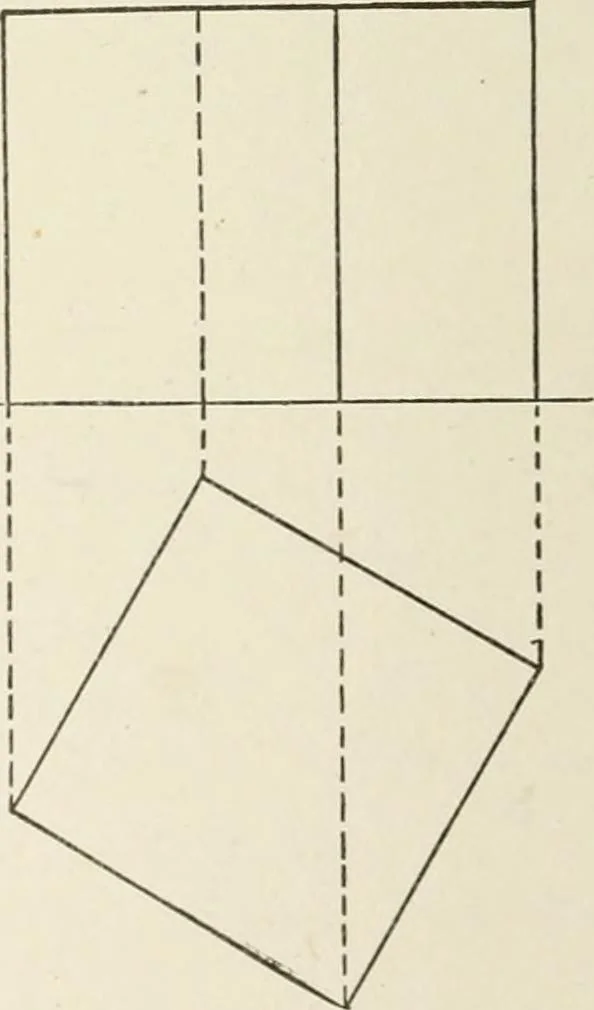

Fig. 144. Isometric of a Cube same size. In the figure the edges of the base are inclined at 30° with a T-square line, but this isnot always the case. For rectangular objects, such as prisms, … F^iR. 145. Plan and Eleva-tion of a Cube Fig. 146. Cube of Fig. 145 Rotated30° with Vertical Plane cubes, etc., the base edges are at 30° only when the prism or cubeis .suppo.sed to he in tlie simplest possible position. The cube inIig. 144 is supposed to be in the position indicated by plan and…
